Miniature Machining

Sanluo Precision is a leading manufacturer and supplier of miniature machining in China, focusing on precision manufacturing technologies such as micro mechanical machining, micro EDM and laser micromachining. The company provides professional customized micro EDM machining services for the electronic communication, precision instrument, medical device, aerospace and other industries, and supports the customization of complex and difficult parts. It realizes one-stop manufacturing of the whole process from micro parts to micro assembly, meeting the stringent standards of various fields for miniature machining.

Send Inquiry

Product Description

Diversified processing techniques

Sanluo Precision Company is equipped with a complete miniature machining technology system. In micro-mechanical processing, through processes such as micro-turning, milling, and grinding, processing with a minimum diameter of φ0.01mm can be achieved, with a precision of ±0.001mm, suitable for mass production. Micro-electrical discharge machining can complete micro-holes ranging from φ0.02mm to 2mm, micro cavities of 0.03mm, and micro shafts ranging from φ0.01mm to 0.5mm, especially suitable for hard materials and complex-shaped parts. Laser micro-processing covers applications such as cutting, drilling, and welding, with the minimum feature size reaching 1μm, and a small heat affected zone, suitable for the precise processing of brittle materials and thin-walled parts. In addition, combined processes such as turning and milling, combined electrical discharge machining and machining, and other composite processes can complete the manufacturing of complex parts with one setup.

Processing range of precision parts

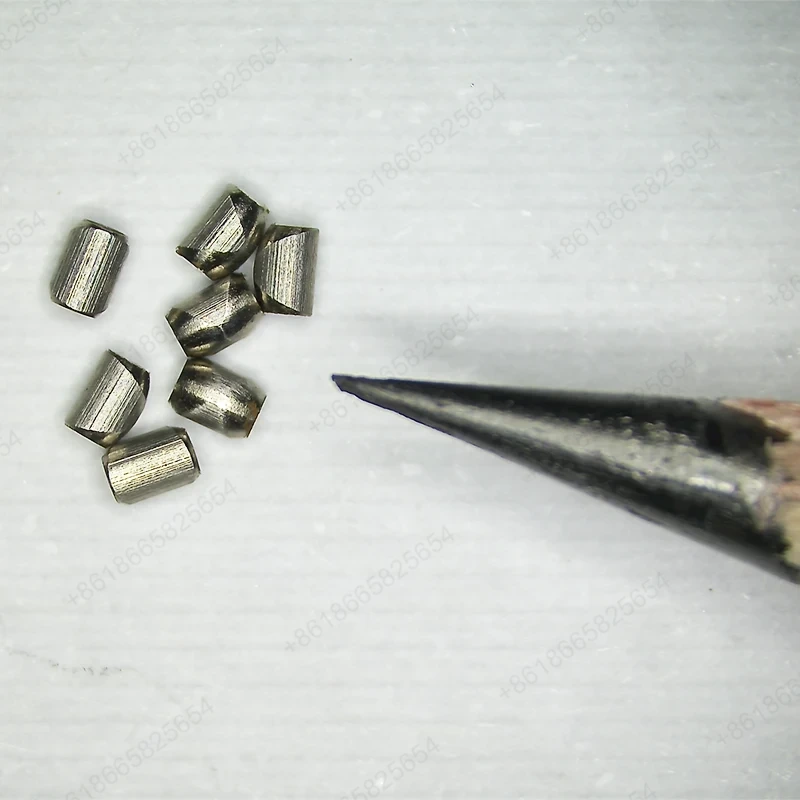

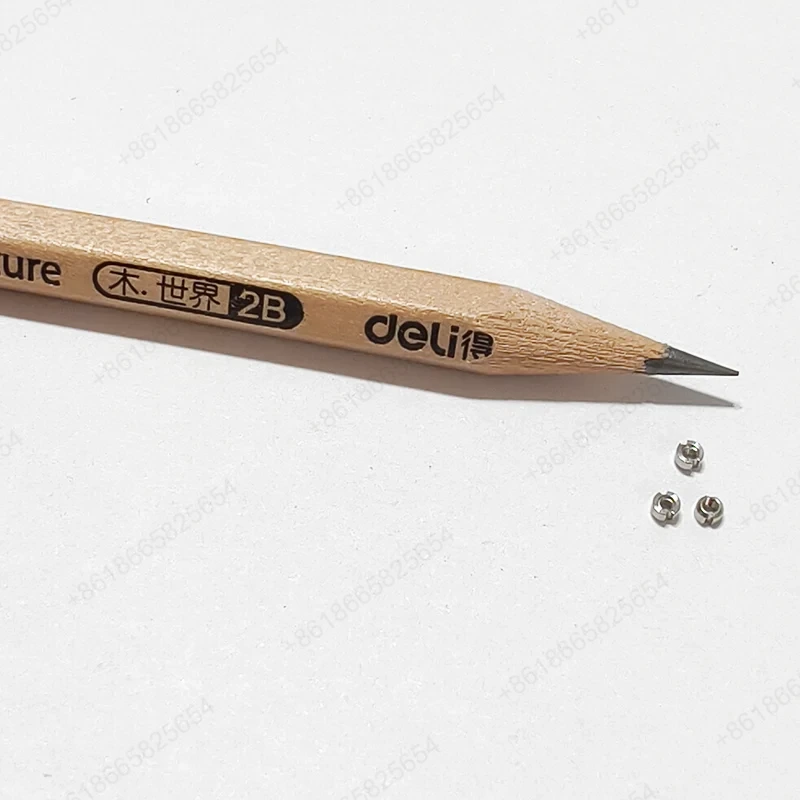

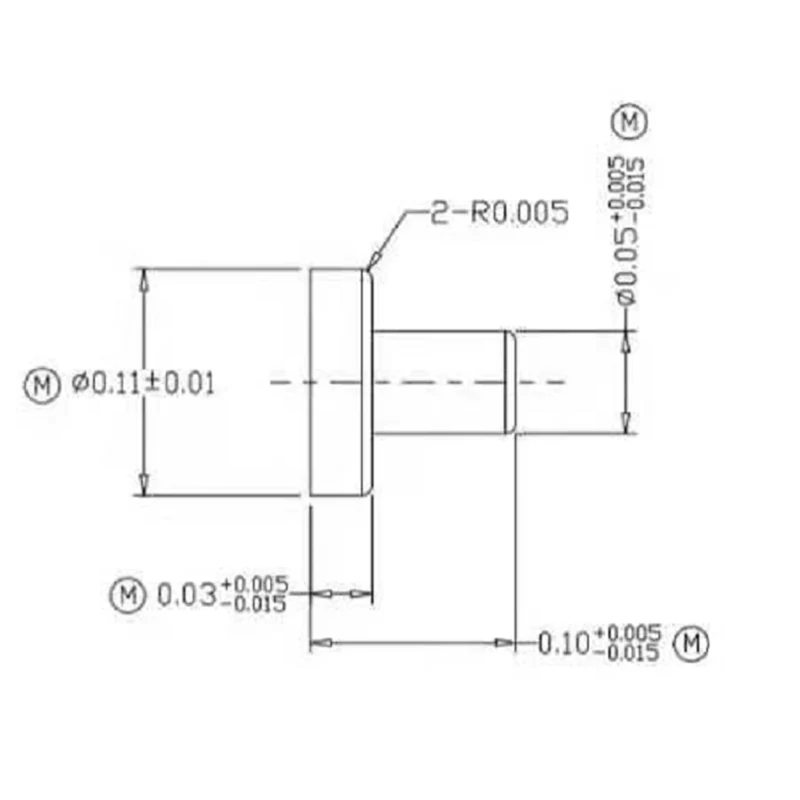

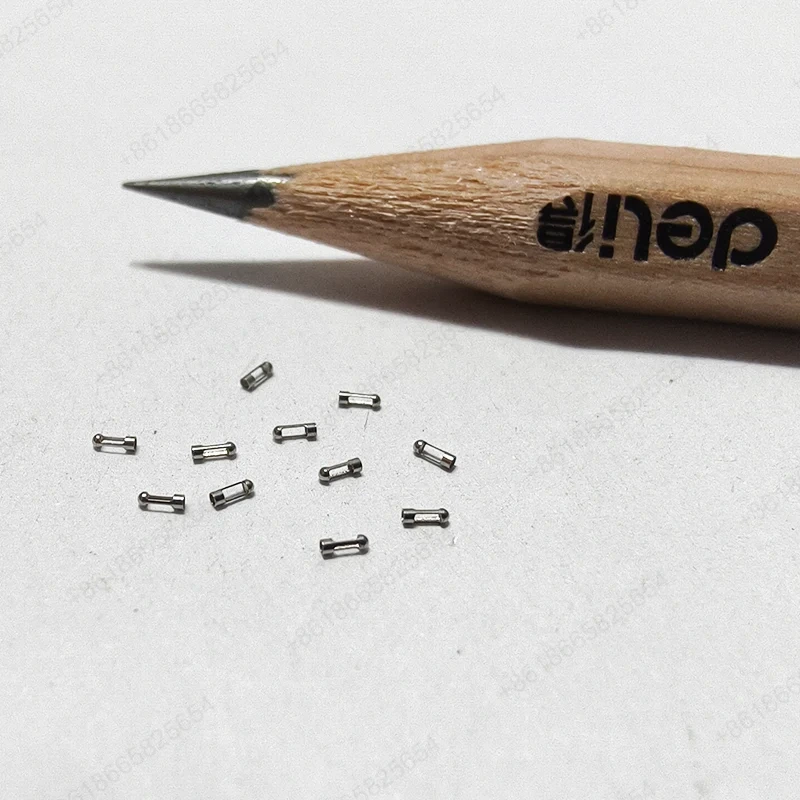

As a professional manufacturer of miniature machining, Sanluo Precision Company offers a wide range of processing services for various miniature parts. The diameters of miniature shafts range from 0.01mm to 5mm, with lengths from 1mm to 50mm. The roundness is ≤ 0.003mm, and the surface roughness Ra is ≤ 0.1μm. The gear module for miniature gears is 0.05 - 1mm, with tooth counts ranging from 8 to 100, and the tooth profile accuracy reaches IT7 level. The surface quenched hardness is HRC 58 - 62. The diameter of miniature threads is φ0.1 - 3mm, with pitches ranging from 0.2mm to 1mm, and the precision can reach 6H/6g level. The company has over 50 sets of high-precision equipment, with an annual production capacity of 1 million miniature parts. It provides stable customized micro EDM machining services to global customers, ensuring reliable quality and timely delivery.

Miniature Machining Station Accuracy

Dimensional accuracy	OD	ID	T（C）	SH	R
unit:±/mm	0.001	0.001	0.001	0.001	0.001
Geometric accuracy	Roundness	Coaxiality	Straightness	Concentricity	Profile tolerance
unit:±/mm	0.001	0.002	0.002	0.002	0.001
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Equipment technical parameters

Parameter Categories	Parameter Details
Equipment Model	KERN Micro
Core Positioning	Ultra-miniature coordinate-level processing
Number of Axes	Suitable for both 3-axis and 5-axis processing
Processing Capacity	The workpieces with a diameter of 0.030 millimeters and a height of 0.220 millimeters can be processed.
Critical Accuracy	Positioning accuracy: 2 µm, Repeatability positioning accuracy: 1 µm
Structural Features	Unique marble bed frame is combined with static floating guide rails and linear motors; it occupies an extremely small area.
Typical Applications	Precision miniature machining components and parts, etc.

Parameter Categories	Parameter Details
Equipment Model	iQ300
Brand / Origin	MAKINO
Core Positioning	Sub-micron precision vertical processing
Number of Axes	Insufficient information
Drive and Feedback	Employing advanced linear motor design and equipped with a 0.005 micron-level grating scale feedback system
Temperature Control System	Unparalleled component temperature control
Spindle System	Spindle speed: 45,000 rpm
Core Functions	Integrate the Mutohyo Hybrid Automatic Tool Length Measurement System (HyATLM) to ensure sub-micron accuracy
Core Advantages	The wide application range, large stroke and flexible spindle design are suitable for the efficient production of micro parts.
Typical Applications	Precision miniature machining components and parts, etc.
