Micro EDM

Sanluo Precision is a professional manufacturer and supplier of micro EDM in China, with 15 years of accumulated technology in micro machining processing, providing customers with micron-level ultra-precision micro EDM machining services. It offers professional customized precision micro machining services for the fields of precision molds, aerospace, medical devices, micro-electro-mechanical systems (MEMS), and supports the customization of complex and difficult parts. It realizes ultra-precision processing to meet the stringent requirements of various industries for micro EDM.

Send Inquiry

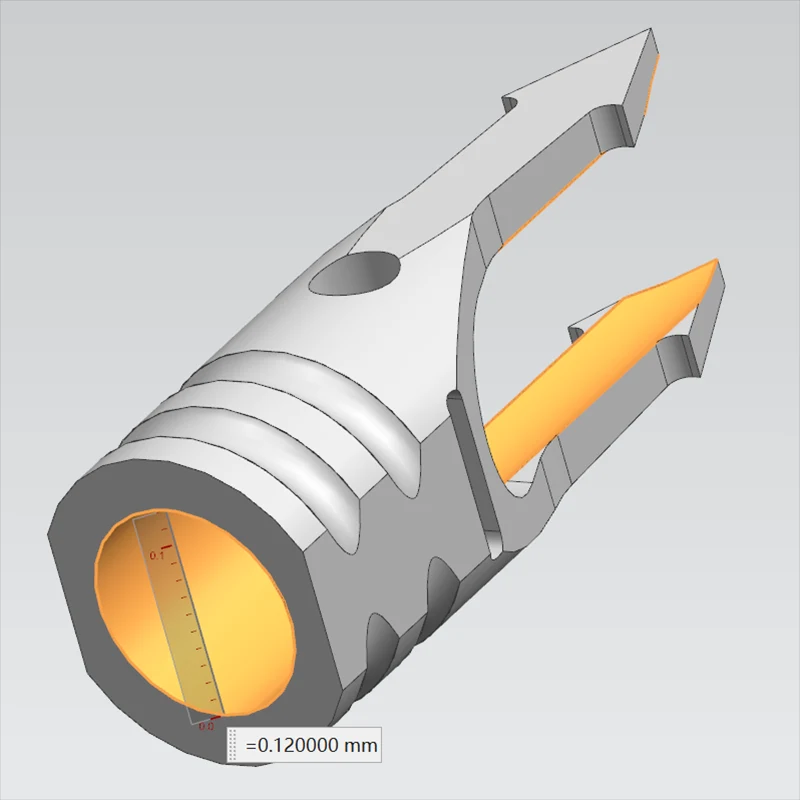

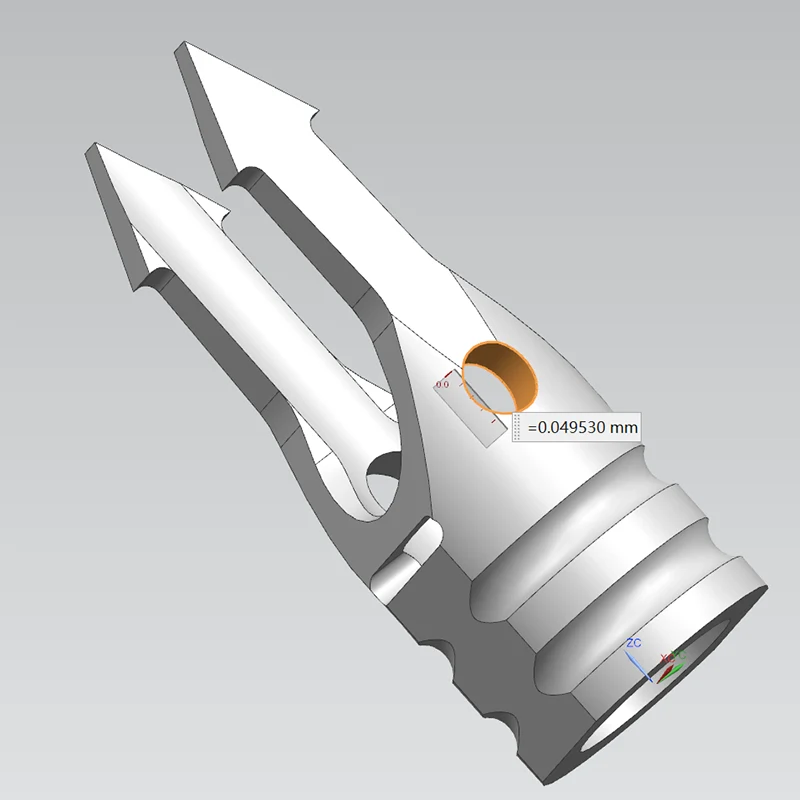

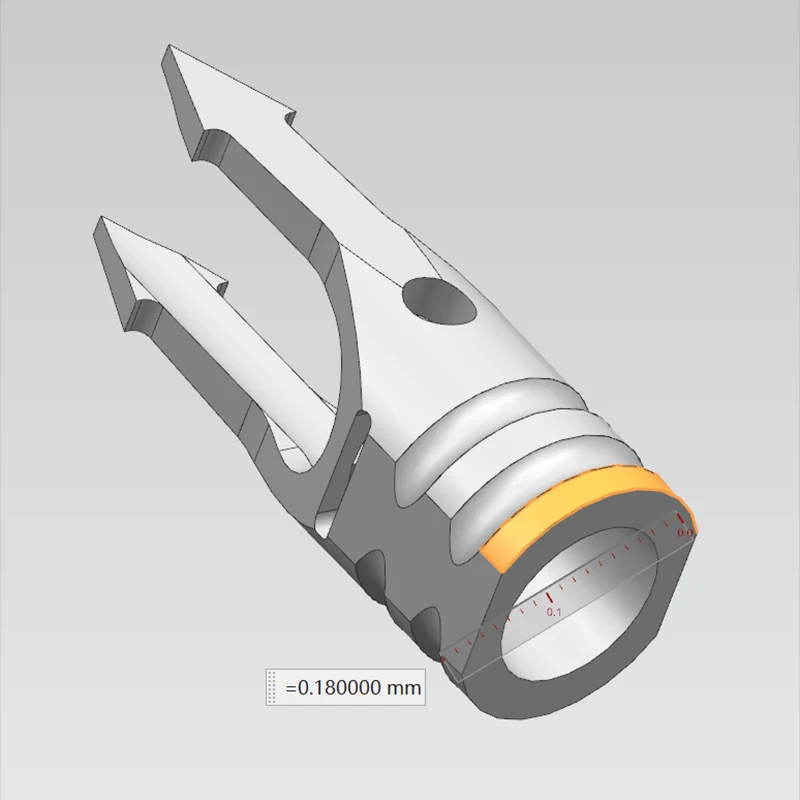

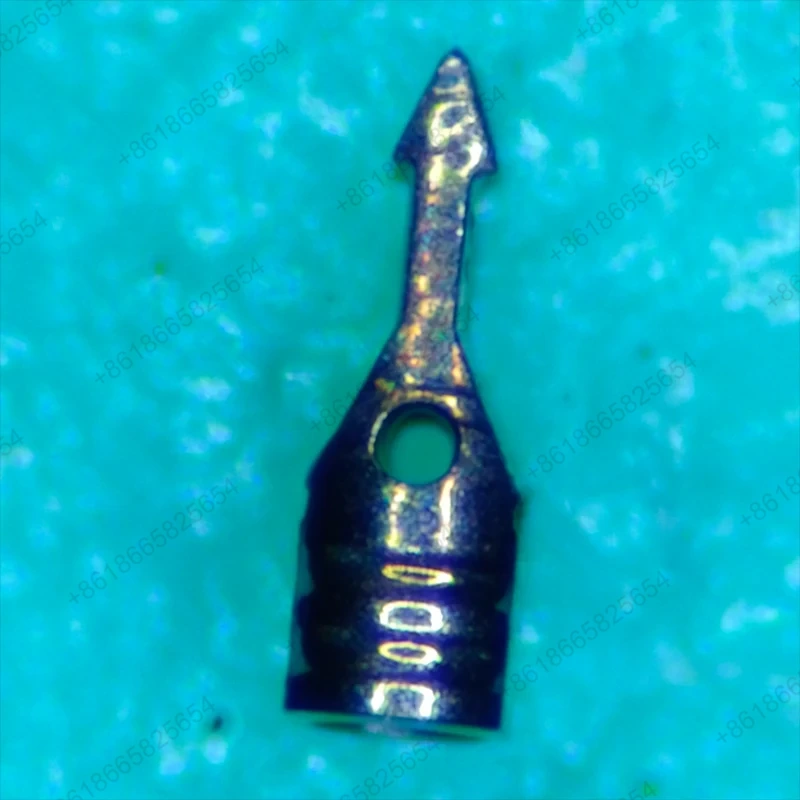

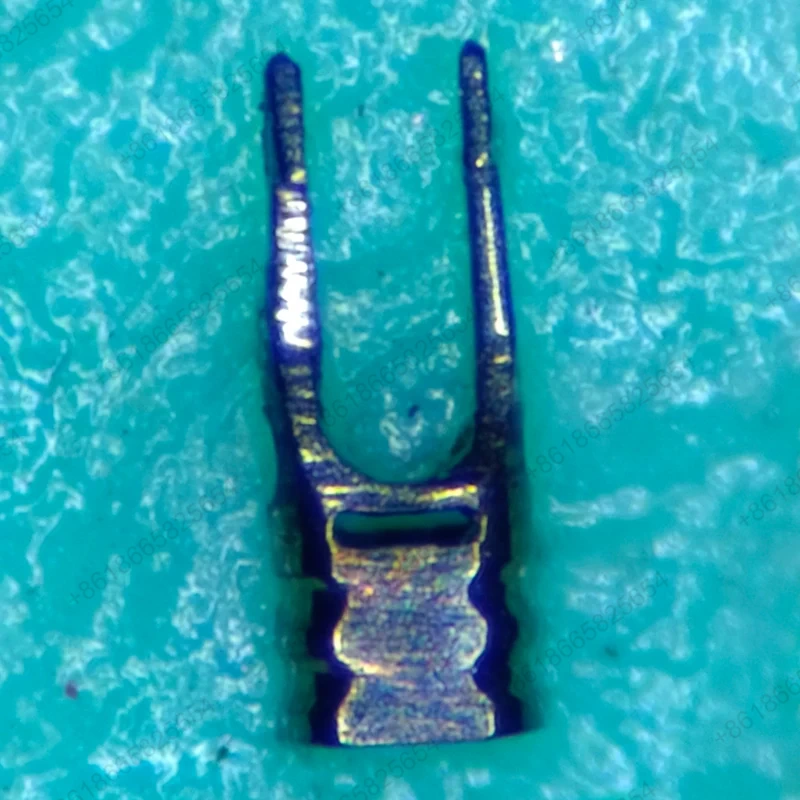

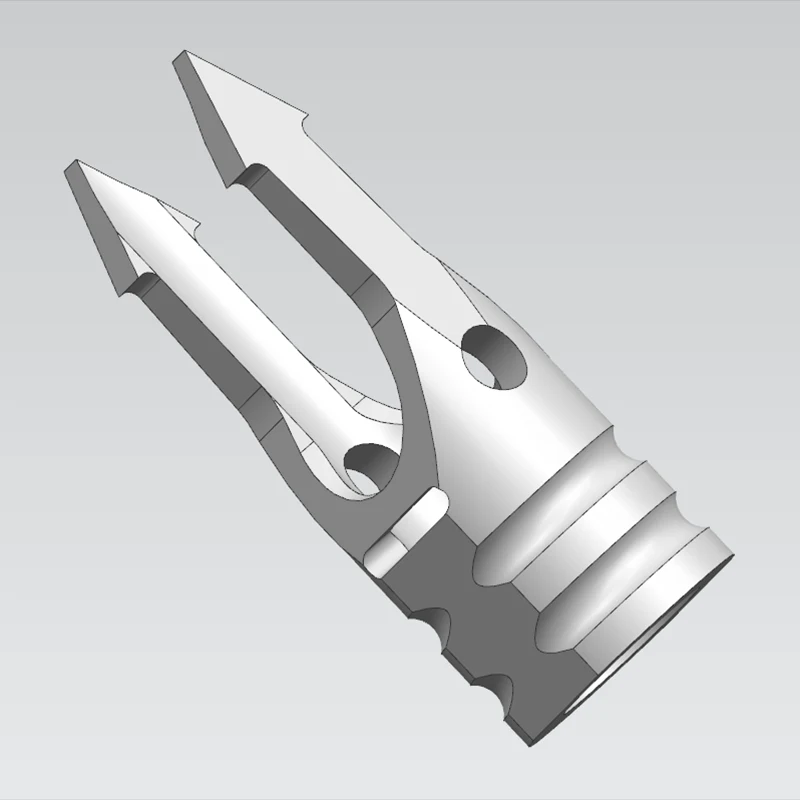

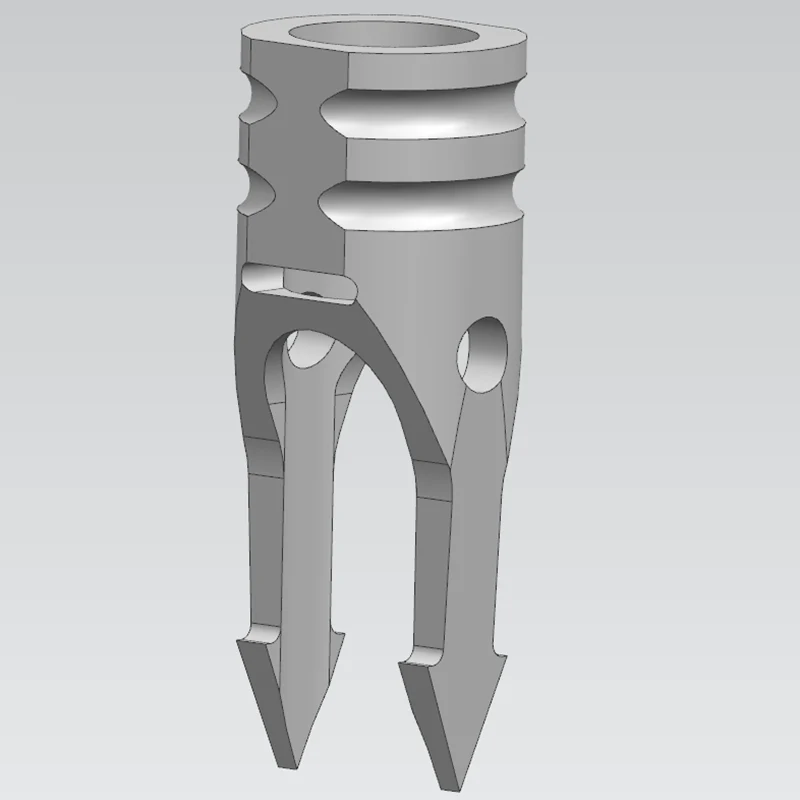

Product Description

Micro Machining Capability

Sanluo Precision's processing plant is at the high end of the industry in terms of micro machining level. Micro-hole processing: the minimum hole diameter is φ0.02mm, depth-diameter ratio ≥50:1, hole position accuracy ±2μm, roundness ≤0.005mm. Micro-shaft processing: the minimum diameter is φ0.01mm, length-diameter ratio ≥20:1, cylindricity ≤0.003mm, surface roughness Ra ≤0.4μm. Micro-cavity processing: the minimum feature size is 0.05mm, cavity depth ≤10mm, surface roughness Ra0.2-0.8μm. Micro-groove processing: groove width 0.1mm to 0.5mm, depth-width ratio ≥10:1, side wall verticality greater than 85 degrees. The equipment is equipped with a high-precision micro EDM machine with a positioning accuracy of 0.5μm and a spindle runout of less than 0.001mm. The temperature and humidity control standards of its constant temperature workshop are 20℃±0.2 and 50%RH±3 respectively.

Micro EDM Station Accuracy

Dimensional accuracy	OD	ID	DP	SW	SH
unit:±/mm	0.001	0.001	0.001	0.001	0.001
Geometric accuracy	Roundness	Coaxiality	Cylindricity	Symmetry	Concentricity
unit:±/mm	0.001	0.002	0.003	0.002	0.002
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Micro Electrode Fabrication

Sanluo Precision has advanced micro electrode fabrication technology and is a professional manufacturer of micro EDM. Electrode materials include tungsten wire, tungsten copper, red copper, with a diameter of φ0.02 - 0.5mm. The company's electrode fabrication: WEDG EDM wire grinding is used to process micro-shaft electrodes with a diameter accuracy of ±0.002mm and surface Ra0.2μm. Block electrode: micro milling or EDM is used to make micro forming electrodes. Tungsten electrode loss <0.1%, tungsten copper electrode loss <0.3%, red copper electrode loss <1%, electrode compensation to ensure accuracy. Electrode life: a single electrode can process 50 to 200 micro holes with good repeatability. Sanluo Precision has provided customized micro machining services for Huawei, BYD, Murata Manufacturing and other companies, processing 100,000 micro parts annually with extremely stable accuracy and very reliable quality.

Technical Parameters of Micro EDM Equipment

Parameter Category	Parameter Details
Equipment model	SX-100HPM
Core positioning	High-precision 3D micro EDM milling, micro-dent processing
Number of axes and stroke	X/Y/Z/Z2 axis stroke: 250x150x150x150 mm
Key accuracy	Positioning accuracy ±2μm, resolution 0.1μm
Micro machining capability	Able to process the smallest Φ0.01mm (10μm) micro holes
Spindle feed rate	Maximum Z-axis 650 mm/min; maximum X/Y-axis 800 mm/min
Core advantages	Equipped with on-line micro electrode preparation and laser measurement functions; can be used as a CNC micro EDM milling machine
Typical applications	Precision micro EDM parts, etc

Parameter Category	Parameter Details
Equipment model	FO350SP
Core positioning	Precision mold processing with high surface quality and high efficiency
Number of axes and stroke	3-axis. X/Y/Z axis stroke: 350×250×300 mm
Motion performance	Z-axis moving speed 7.5m/min, acceleration 5m/s²
Key accuracy	Equipped with linear grating ruler, resolution 50nm; large-area processing surface roughness Ra < 0.3μm, local polishing can reach Ra < 0.1μm
Core technology and advantages	iQ zero loss module greatly reduces electrode loss; Dynamic Process Control (DPC) optimizes parameters in real time; Trans-Expert orbital motion algorithm improves edge finish
Typical applications	Microelectronic connector molds (achieving mirror effect in 0.2mm deep and narrow grooves), medical device housing molds and other micro EDM
