Micro Electrical Discharge Machining

Sanluo Precision is a leading manufacturer and supplier of micro electrical discharge machining in China, with micro-nano level precision processing technology, providing customers with submicron level micro EDM machining services. It offers professional customized micro EDM machining services for high-end manufacturing fields such as precision instruments, optical devices, microfluidic chips, micro-electro-mechanical systems (MEMS), and supports the customization of complex and difficult parts. It breaks through the limitations of traditional processing, realizes micron-scale ultra-precision processing, and fully meets the stringent requirements of high-end manufacturing for micro electrical discharge machining.

Send Inquiry

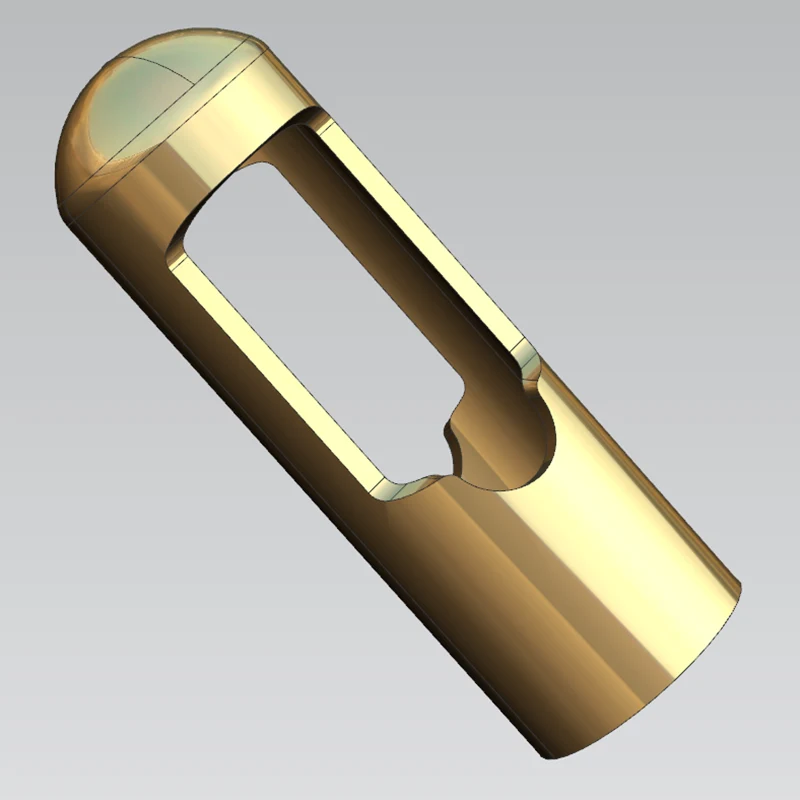

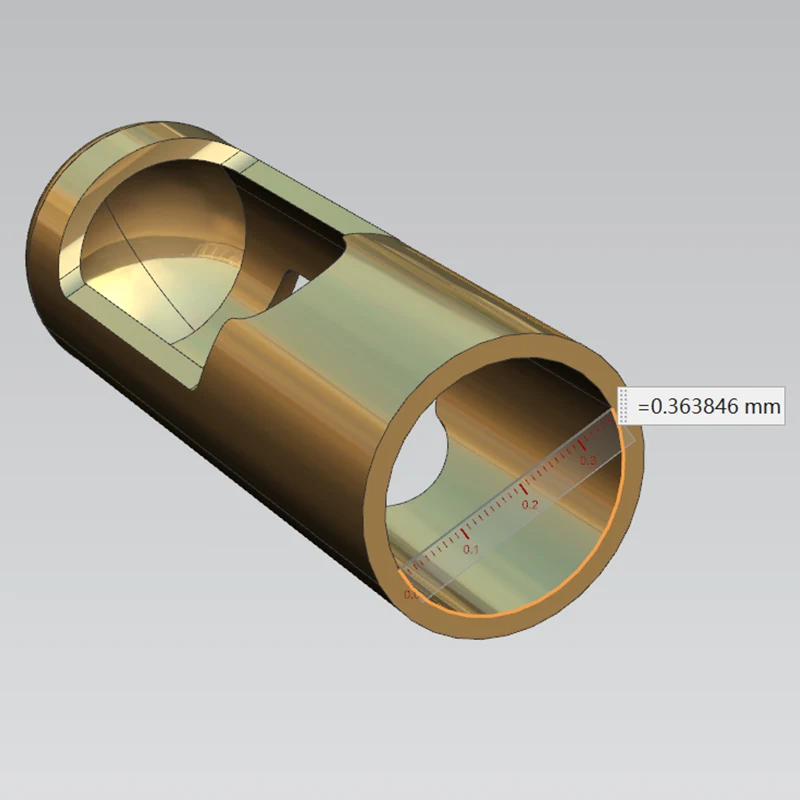

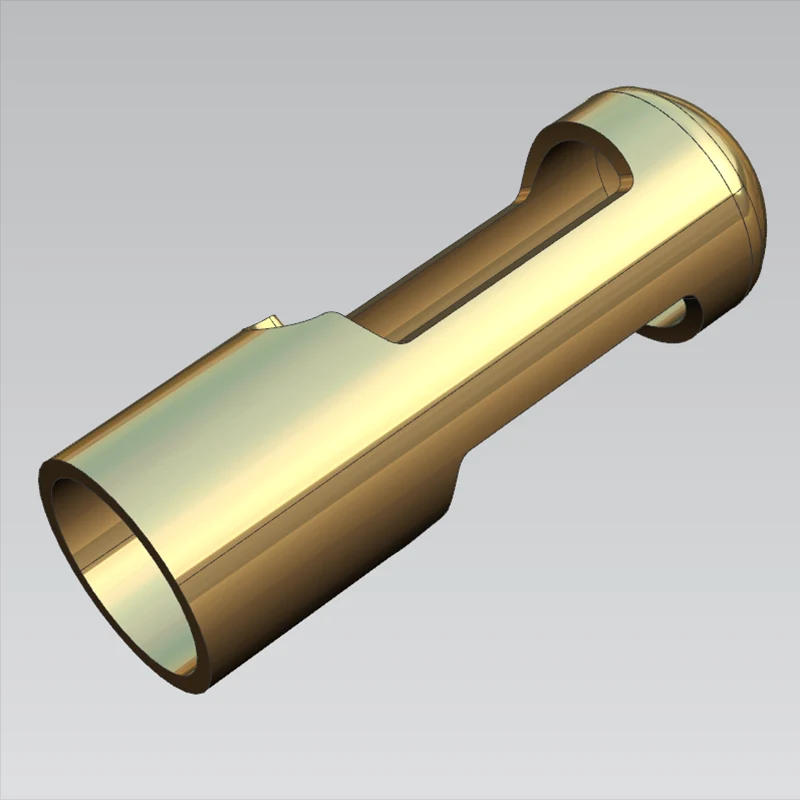

Product Description

Ultra-precision Process

Sanluo Precision's processing plant has mastered the ultra-precision process of micro electrical discharge machining. WEDG wire grinding: tungsten wire EDM wire grinding with φ0.01mm to φ0.05mm is used to process micro-shaft electrodes with a diameter of φ0.02mm to φ0.5mm, diameter accuracy ±0.001mm, cylindricity 0.002mm, surface roughness Ra 0.1μm. Micro-energy discharge: single pulse energy is 10⁻⁸ to 10⁻¹⁰ joules, discharge spot diameter is less than 3μm, material is removed at the atomic level, and the surface quality is good. Precision servo: nanometer-level feed resolution, adaptive gap control, real-time detection of discharge status. Constant temperature and humidity: the processing environment temperature is 20±0.1℃, humidity is 50±2%, active vibration isolation to ensure stability. Online detection: laser measurement, white light interferometer, atomic force microscope, with an accuracy of up to nanometer level.

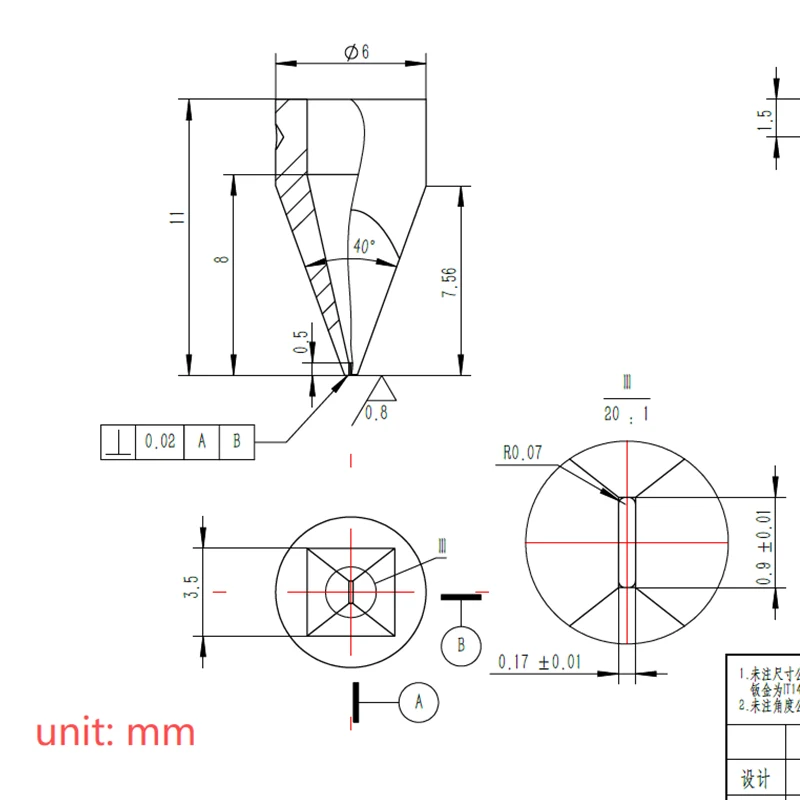

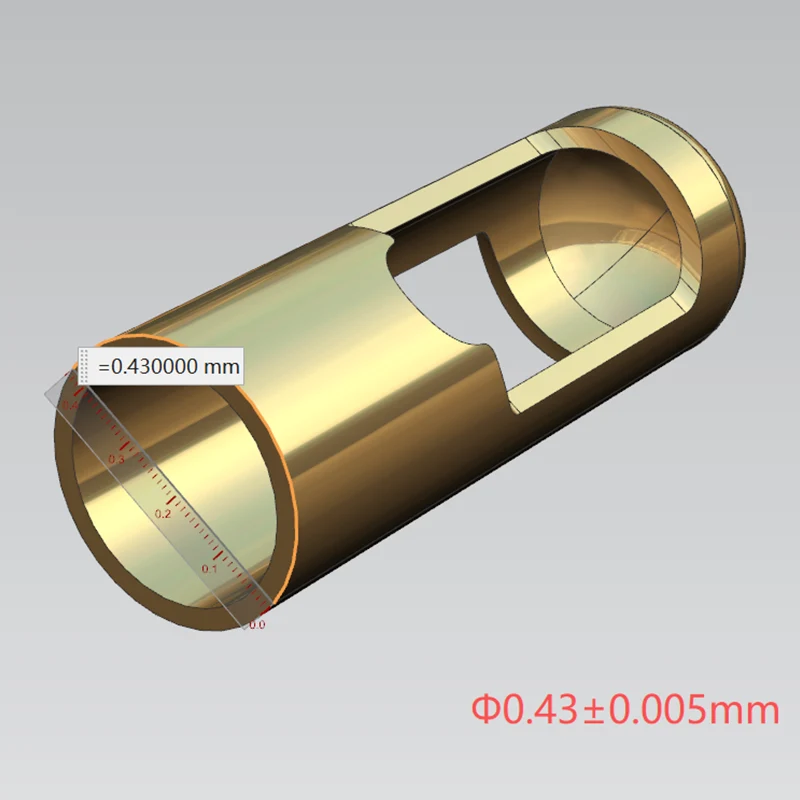

Station Accuracy

Dimensional accuracy	OD	ID	DP	SW	SH
unit:±/mm	0.001	0.001	0.001	0.001	0.001
Geometric accuracy	Roundness	Coaxiality	Cylindricity	Symmetry	Concentricity
unit:±/mm	0.001	0.002	0.002	0.002	0.002
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

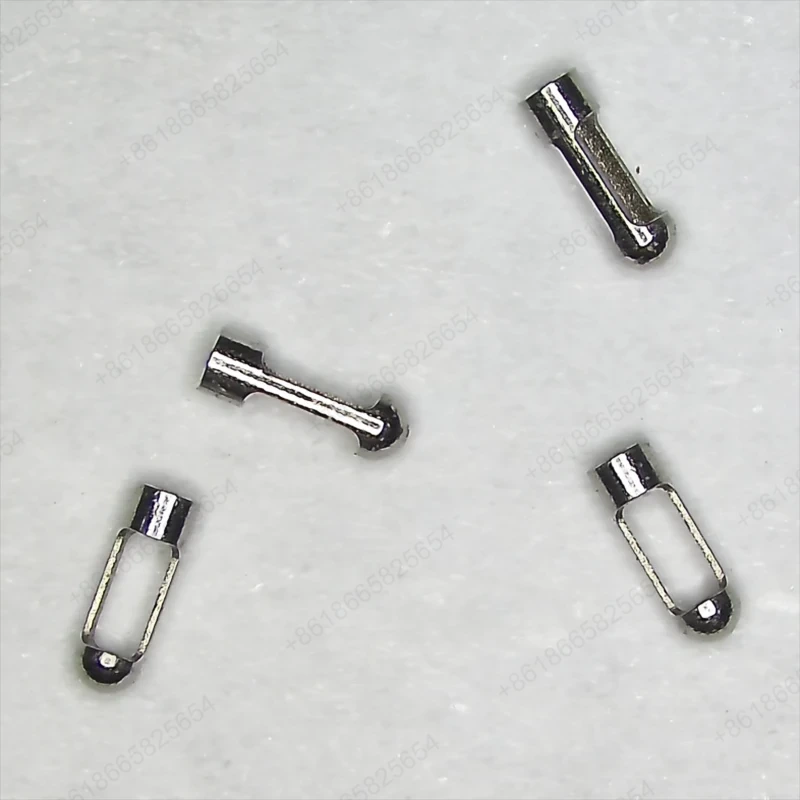

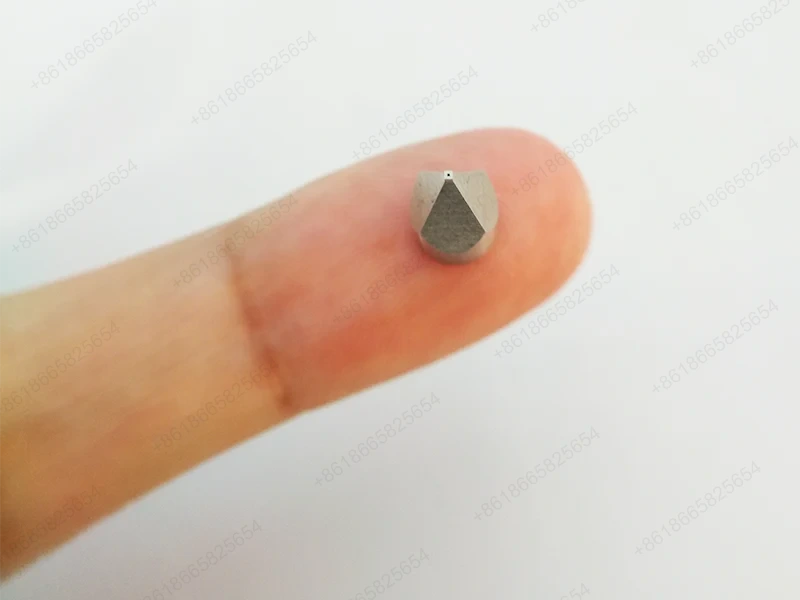

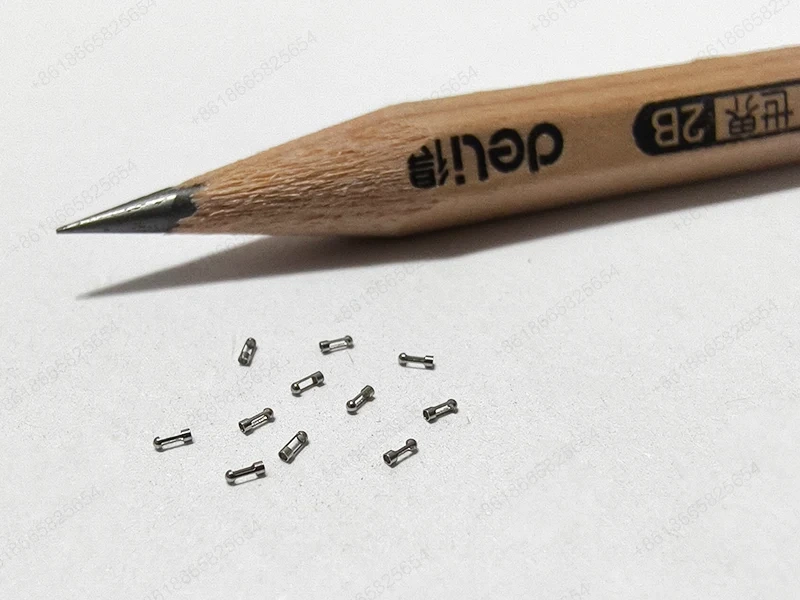

Micro Electrode Technology

Sanluo Precision's micro electrical discharge machining services cover multiple industries. Precision molds: fine inserts of plastic molds with a feature size of 0.1mm to 0.5mm. Micro core rods of powder metallurgy molds with a diameter of φ0.3mm and a length of 15mm. Aerospace field: precision film holes of turbine blades with a hole diameter of φ0.3～0.8mm and an inclination angle of 20～30°. Porous plates of fuel nozzles with a hole diameter of φ0.15mm to 0.3mm and 50 to 100 holes. Micro teeth of minimally invasive surgical knives with a tooth pitch of 0.2mm and a tooth height of 0.03mm. Side holes of catheters with a diameter of φ0.1～0.3mm and uniform distribution. MEMS: micro via holes of piezoelectric ceramics with a diameter of φ0.05mm to 0.2mm. Silicon-based microstructure processing with feature size <0.1mm. The company has provided customized micro machining services for Huawei, BYD, Murata Manufacturing and other companies, processing 100,000 micro parts annually.

Technical Parameters of Micro Electrical Discharge Machining Equipment

Parameter Category	Parameter Details
Equipment model	SX-100HPM
Core positioning	High-precision 3D micro EDM milling, micro-dent processing
Number of axes and stroke	X/Y/Z/Z2 axis stroke: 250x150x150x150 mm
Key accuracy	Positioning accuracy ±2μm, resolution 0.1μm
Micro machining capability	Able to process the smallest Φ0.01mm (10μm) micro holes
Spindle feed rate	Maximum Z-axis 650 mm/min; maximum X/Y-axis 800 mm/min
Core advantages	Equipped with on-line micro electrode preparation and laser measurement functions; can be used as a CNC micro EDM milling machine
Typical applications	Precision micro electrical discharge machining parts, etc

Parameter Category	Parameter Details
Equipment model	HQ-UA40
Core positioning	Mirror surface processing of high-precision micro molds
Number of axes and stroke	3-axis. X/Y/Z stroke: 400×300×300 mm
Key accuracy	Positioning accuracy ≤0.005mm, optimal surface roughness 0.07µm
Pulse power supply	The minimum processing current is only 0.1A, equipped with a variety of special circuits such as finish machining voltage stabilizing circuit and low loss control circuit
Core advantages	Able to achieve real mirror surface processing; bus-type CNC system with a control resolution of 0.01μm
Typical applications	Micro electrical discharge machining for packaging molds, connectors and other high-precision products
