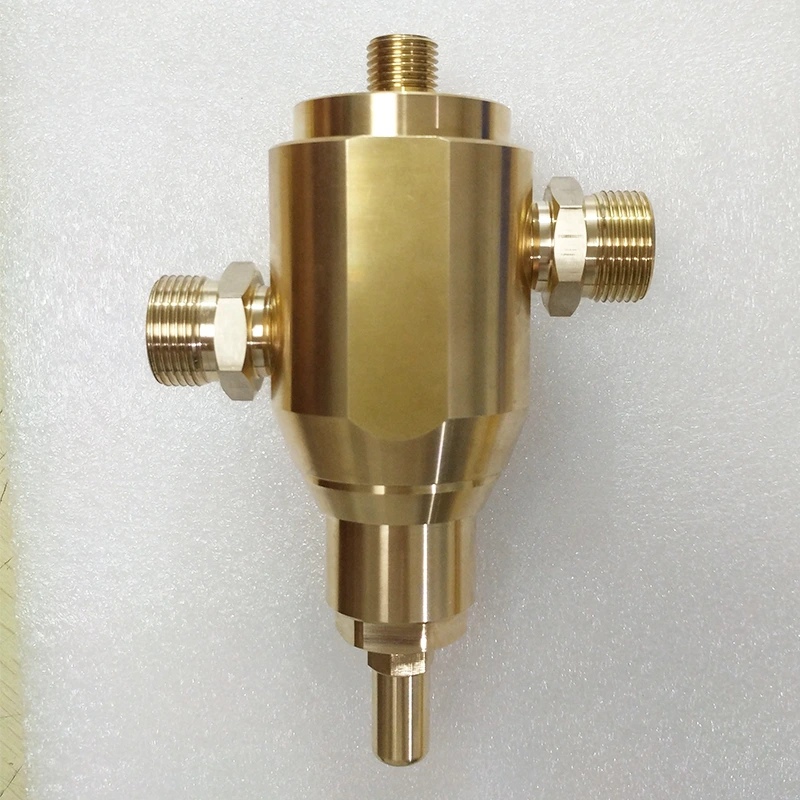

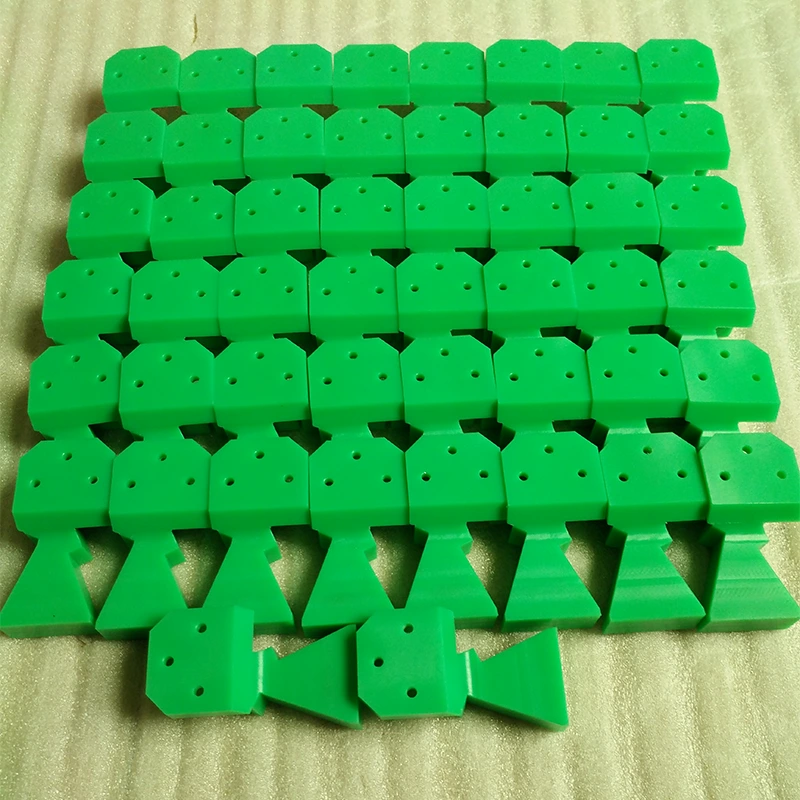

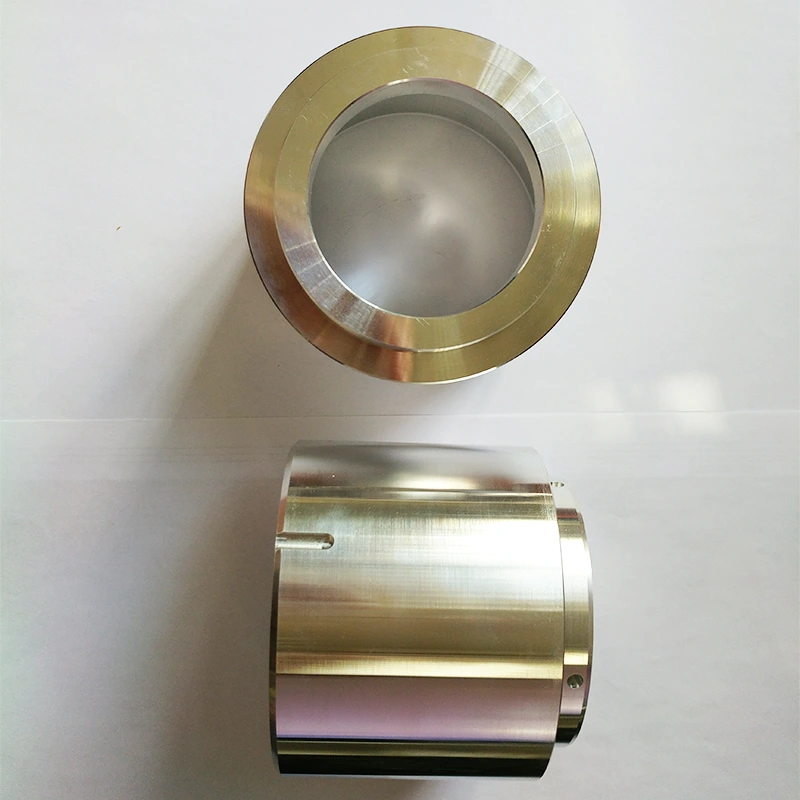

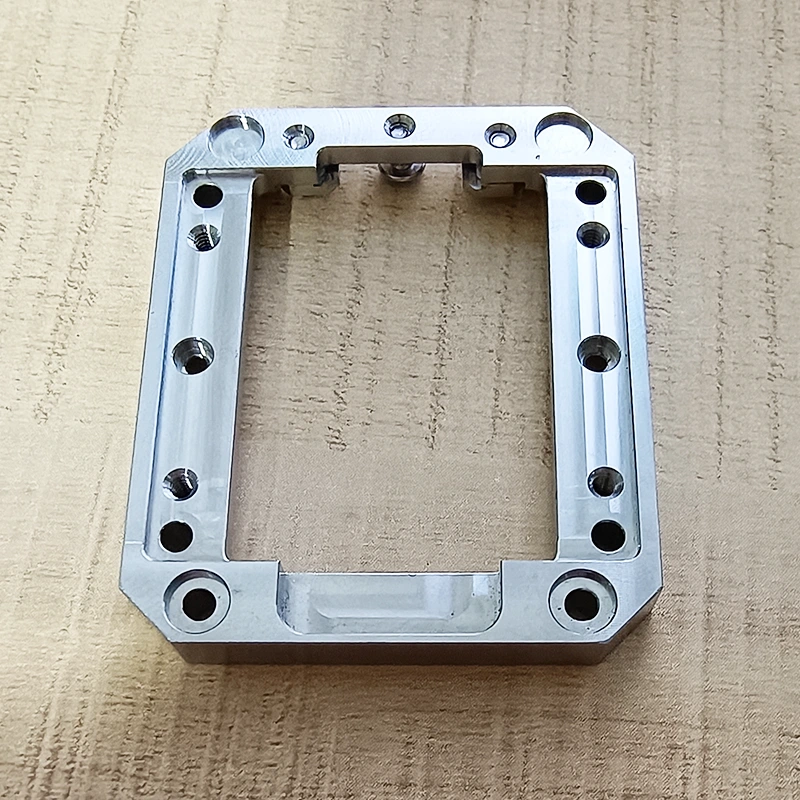

CNC Machined Components

Sanluo Precision is a professional manufacturer and supplier of CNC machined components. We mainly produce various NC machining and provide customers with one-stop processing services for all kinds of industrial parts, from single parts to complex component assemblies. Relying on a complete processing chain and strict quality control, we can ensure assembly accuracy and functional coordination among all components, save customers assembly and debugging time, provide professional customized CNC machined components services, and support the customization of complex and difficult parts.

Send Inquiry

Product Description

Systematic Processing Thinking

Sanluo Precision’s processing plant adopts systematic processing thinking for CNC machined components, focusing not only on the accuracy of a single part but also on the matching between components. 3D assembly simulation is used to detect potential problems such as interference and clearance in advance. The unified datum method is adopted to ensure the accurate position of important features such as matching surfaces and positioning holes. Matching parts such as gear pairs, bearing seats, and couplings are strictly controlled for geometric tolerances such as coaxiality and perpendicularity to achieve high-precision assembly. We have integrated multi-process capabilities including turning, milling, boring, grinding, drilling, and tapping. Process integration reduces component turnover times and improves processing efficiency. Using turn-mill composite machines, shaft components can complete turning, milling, drilling, and tapping in one clamping, ensuring position accuracy between all surfaces of the component and shortening the production cycle by more than 30%.

Station Accuracy

Dimensional accuracy	L（X）	W（Y）	H（Z）	SH	GD
unit:±/mm	0.005	0.002	0.001	0.005	0.008
Geometric accuracy	Flatness	Parallelism	Perpendicularity	Roughness	Position tolerance
unit:±/mm	0.002	0.003	0.005	Ra0.8	0.008
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

The configured testing instruments and measuring tools include: CMM coordinate measuring machine, image measuring instrument, projector, laser diameter gauge, laser interferometer, roughness meter, roundness meter, tool microscope, stereomicroscope, micrometer, pin gauge, dial indicator, micrometer with 0.0001mm accuracy, electronic height gauge, caliper, gauge block, hardness tester, thread gauge.

Assembly Verification Service

Sanluo Precision provides different surface treatment processes for different application environments and professionally produces CNC machined components. We have long-term cooperation with professional surface treatment factories to ensure stable and controllable surface treatment quality. Pre-assembly inspection can be carried out; before delivery, we trial-assemble the components to check assembly clearance, fastening torque, smooth movement, etc. We have provided customized NC machining services for thousands of parts in precision instruments, automation equipment, medical devices and other industries.

Technical Parameters of CNC Machined Components Equipment

Parameter Category	Parameter Details
Worktable size	850 x 500 mm
Stroke (X/Y/Z)	650 x 500 x 450 mm
Spindle system	Standard 20,000 rpm HSK-A63 electric spindle, adopting spindle core cooling and bearing internal pressure lubrication technology
Key accuracy	Positioning accuracy: ±0.0015mmRepeat positioning accuracy: ±0.001mm
Tool magazine capacity	30 tools
CNC system	Makino Professional 6 controller, equipped with Super Geometric Intelligence (SGI.5), which can shorten the processing cycle of complex models
Core advantages	High-rigidity structure, good thermal stability; optimized for hard cutting and complex geometry processing
Typical applications	precision CNC machined components, etc

Parameter Category	Parameter Details
Equipment model	HD-T640 High-speed High-precision Drilling & Tapping Center
Core positioning	High-speed high-precision drilling and tapping, suitable for 5G communication and 3C products
Number of axes	3-axis
Stroke (X/Y/Z)	600 / 400 / 300 mm
Spindle system	Spindle speed 20,000 rpm
Motion performance	3-axis rapid traverse 48 m/min
Tool magazine system	21T servo tool magazine
Typical applications	precision CNC machined components, etc
