Aerospace CNC Machining

Sanluo Precision is a professional aerospace CNC machining manufacturer and supplier in China. We are one of the few enterprises in the country that meet the aerospace-grade processing standards. We provide professional CNC machining services for aerospace for our clients. The NC machining of our company has extremely high requirements for reliability, precision, and consistency. We have always set zero defects as our quality goal and provide professional customized aerospace CNC machining services for aerospace structure components, key parts, and precision components of control systems.

Send Inquiry

Product Description

Aerospace-level technical standards

The Sanluo Precision factory strictly adheres to the aerospace CNC machining technical standards when conducting processing. The processing accuracy reaches IT6 and IT5 levels, with form and position tolerances of ±0.002mm, and the surface roughness is no more than Ra0.2μm. It masters the low-stress cutting and constant-temperature processing technologies for aerospace-specific materials such as titanium alloy TC4, high-temperature alloy GH4169, and aluminum-lithium alloy. It controls the deformation and residual internal stress of the materials to ensure the long-term use of the parts. Special equipment and environmental conditions include the DMU85 five-axis machining center from DMG MORI and the VF series vertical machining center from Haas. There is a dedicated production processing area with strict management systems for personnel and raw material entry and exit.

Workstation Accuracy

dimensional accuracy	L（X）	W（Y）	H（Z）	SH	ID
unit:±/mm	0.005	0.002	0.001	0.005	0.01
Geometric accuracy	flatness	parallelism	perpendicularity	roughness	concentricity
unit:±/mm	0.002	0.003	0.005	Ra0.8	0.008
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Quality Traceability System

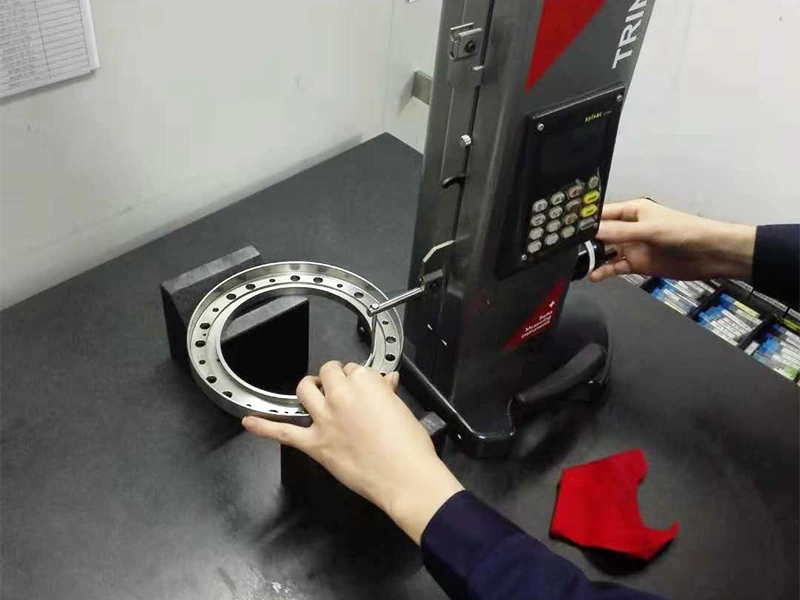

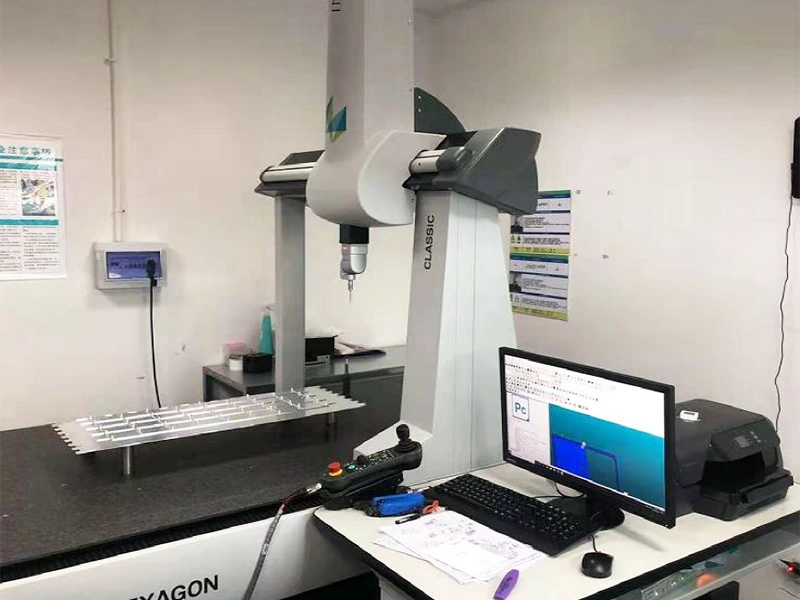

As a professional precision aerospace CNC machining manufacturer, Sanluo Precision Company has a well-established quality traceability system. Each part has a complete quality file, including the batch number of raw materials, heat treatment reports, processing parameters, and test data throughout the process are all stored in the file. Non-destructive testing technologies such as spectral analysis, ultrasonic testing, and X-ray inspection are used to ensure the internal and external quality of the parts. All key dimensions are measured using ZEISS three-coordinate measuring machines, and the test reports comply with AS9100D standards. The company has provided customized NC machining services for important components for multiple aerospace models, with a qualification rate of over 99.8%.

Equipment Technical Parameters

Parameter Categories	Parameter Details
Equipment Model	Makino T2
Core Positioning	Large titanium alloy aerospace components (such as frames, bulkheads) for special aircraft
Number of Axes	5-axis (horizontal type, convertible between horizontal and vertical)
Travel (X/Y/Z)	2000 mm / 2000 mm / 1800 mm
Spindle Speed	4000 rpm, 8000 rpm (optional)
Output Power	100 kW
Fast Move Speed (X/Y/Z)	16000 mm/min
Tool Magazine Capacity	120 pieces
Maximum Worktable Load	5000 kg
Core Advantages	Optimized for titanium milling, featuring an active damping system, a rigid structure, and a high-pressure high-flow coolant system
Typical Applications	Precision aerospace CNC machining components and parts, etc.

Parameter Categories	Parameter Details
Equipment Model	Schaublin 136CNC
Core Positioning	High-precision mass production
Number of Axes	/
Key Accuracy	Roundness cutting: 0.2μm, surface roughness: Ra 0.05μm
Core Advantages	Whole machine temperature control system; capable of performing HRC65 hard material turning and titanium alloy processing
Numerical Control System	Equipped with FANUC Oi Mate TC system
Application Fields	Aerospace CNC machining, electronics, instrumentation and other precision manufacturing fields
