Super Precision Turning

Sanluo Precision is a professional super precision turning manufacturer and supplier in China, focusing on high-precision turning technology of various materials, providing customers with high-quality high precision machining services. We provide professional customized high precision machining services for precision machinery, automotive, aerospace, medical and other industries, and support the customization of complex and difficult parts. We can achieve super precision turning accuracy of IT0-IT5 grade, fully meeting the strict requirements of high-end manufacturing industry for high precision machining.

Send Inquiry

Product Description

Super Precision Turning Capability

Sanluo Precision's super precision turning features: machining material (brass, aluminum alloy, stainless steel, titanium alloy, copper alloy, engineering plastic, ceramic, sapphire); machining size (minimum diameter φ0.1mm, maximum diameter φ500mm, maximum length 2000mm); surface quality (Ra0.01-0.8μm, mirror finish Ra0.01-0.05μm); thread machining (micro thread pitch 0.05mm, precision thread grade 2-4 grade); groove machining (minimum groove width 0.05mm, depth tolerance ±0.001mm). Process advantages: ultra-low cutting force (avoid workpiece deformation), high-speed precision turning (efficiency increased by 2-3 times), dry cutting (environmental protection, no pollution).

Quality Control and Application

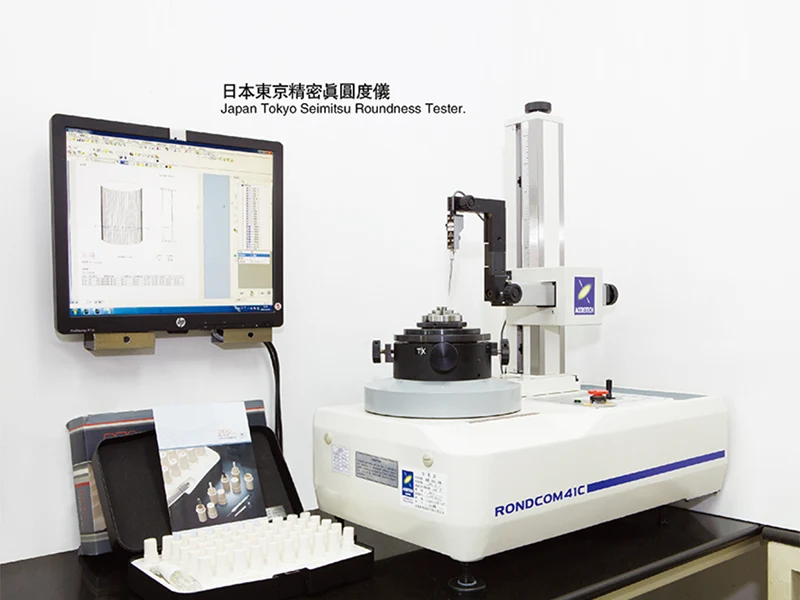

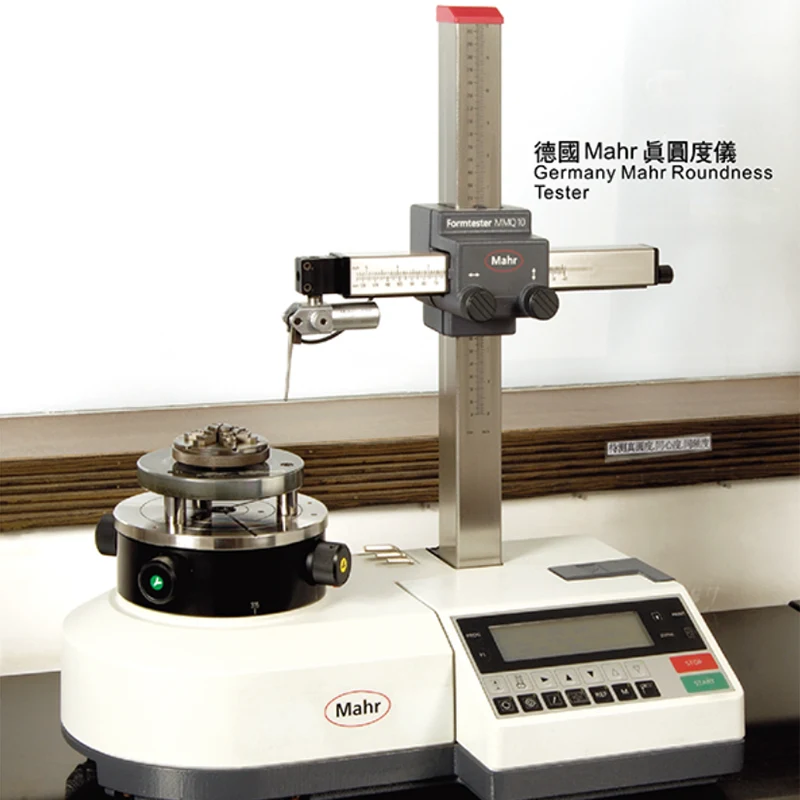

As a professional manufacturer of super precision turning, Sanluo Precision implements strict quality control: 100% inspection of key dimensions by CMM, roundness meter, roughness meter; SPC statistical process control, CPK≥2.0; tool precision management (diamond tool tip radius 0.01-0.1mm, wear compensation ±0.0001mm). Application cases: automotive (fuel injector needle valve IT3 grade ±0.0005mm, surface Ra0.02μm), aerospace (turbine shaft roundness 0.0003mm, coaxiality 0.0005mm), medical (stent tube wall thickness tolerance ±0.001mm, surface Ra0.01μm), precision instrument (micrometer spindle thread grade 2 grade, pitch error ±0.0002mm). We have provided customized high precision machining services to Bosch, Delphi, Medtronic, Siemens and other enterprises, with an annual output of 500,000 pieces and a qualification rate of 99.9%.

Workstation Accuracy

dimensional accuracy	OD	ID	DP	SW	SH
unit:±/mm	0.001	0.001	0.001	0.002	0.002
Geometric accuracy	roundness	coaxiality	cylindricity	symmetry	concentricity
unit:±/mm	0.001	0.001	0.001	0.001	0.001
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Equipment Technical Parameters

Parameter Category	Parameter Details
Equipment Model	STC-38
Core Positioning	High-precision CNC lathe for super precision turning
Axis Number	2-axis (X, Z)
Spindle System	High-precision spindle, rotation accuracy 0.0001mm
Key Accuracy	Repeat positioning accuracy ±0.0001mm, positioning accuracy ±0.0002mm
Machining Range	Maximum turning diameter φ380mm, maximum turning length 1000mm
CNC System	FANUC 0i-TF Plus
Core Advantage	High rigidity, high precision, high efficiency
Typical Application	super precision turning of shaft parts, disc parts

Parameter Category	Parameter Details
Equipment Model	SwissNano
Core Positioning	Swiss-type ultra-precision lathe for micro-component turning
Axis Number	7-axis
Spindle System	Main spindle speed 10,000-50,000 rpm, sub-spindle speed 10,000-40,000 rpm
Key Accuracy	Machining accuracy ±0.0001mm, surface roughness Ra0.01μm
Machining Range	Bar diameter φ0.1-φ32mm
Structural Features	Swiss-type structure, high precision guide rail, thermal error compensation
CNC System	Siemens 840D sl
Typical Application	super precision turning of micro-shaft parts, medical micro-components
