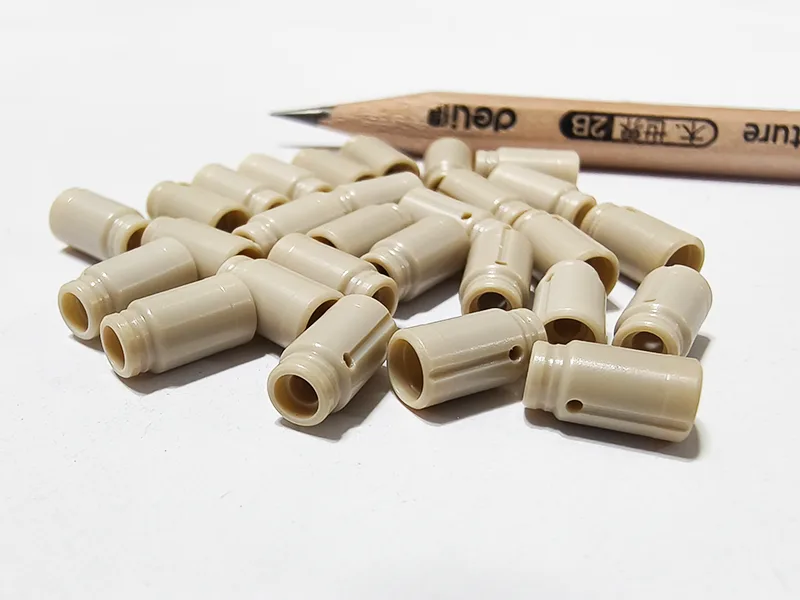

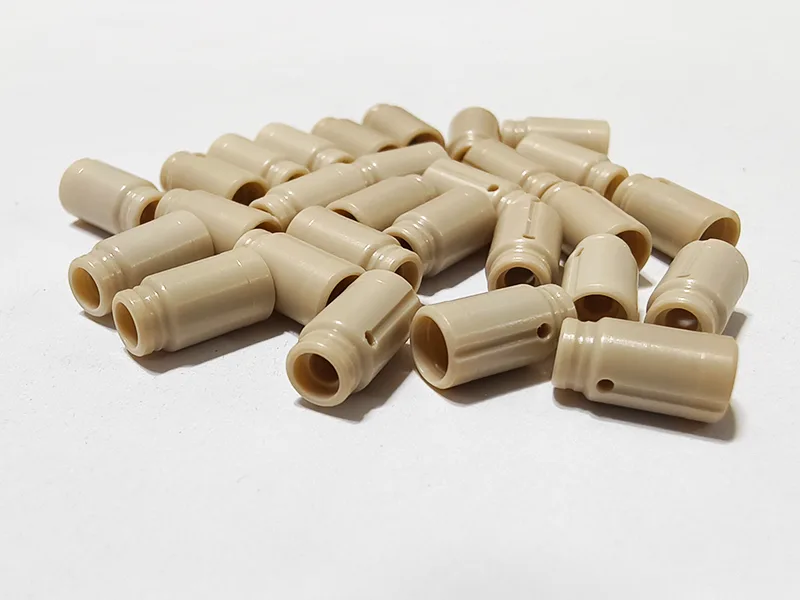

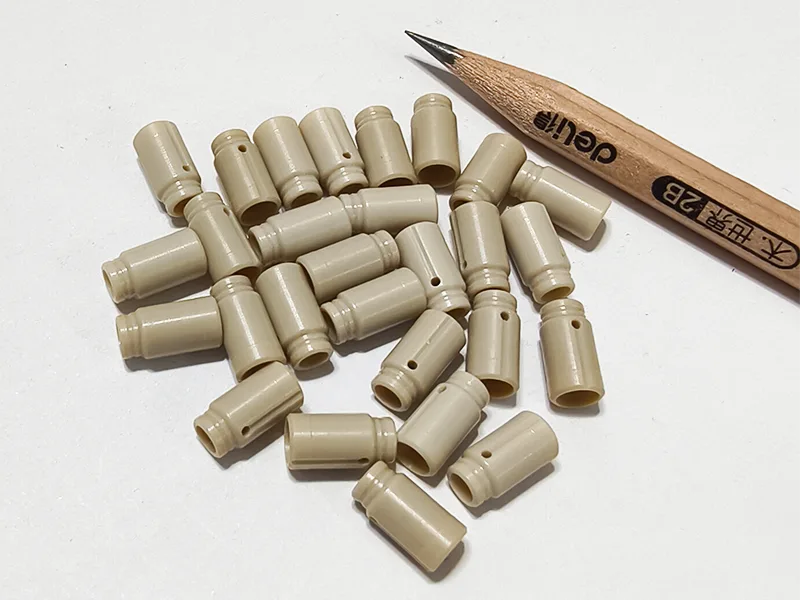

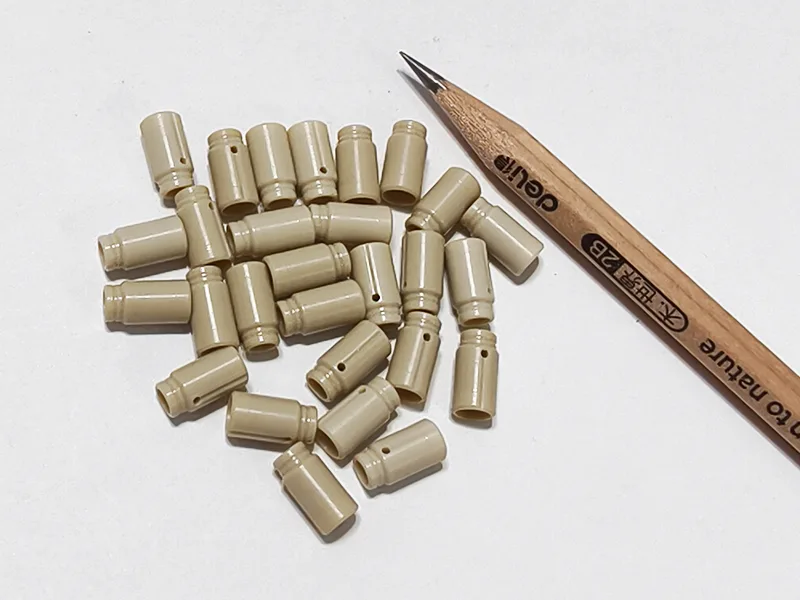

Medical Precision Machining

Sanluo Precision is a professional manufacturer and supplier of medical precision machining in China. It mainly focuses on the production of high-precision medical components and provides professional customization services for customers, supporting the customization of complex and difficult parts. The company integrates precision processing technology with the special requirements of the medical industry, and offers customized medical precision machining services to medical research institutions, medical equipment enterprises, and third-party testing laboratories.

Send Inquiry

Product Description

Micron-scale dimensional control

Sanluo Precision factory has achieved IT1 to IT5 levels in medical precision machining. The key dimension tolerances range from ±0.002mm to ±0.005mm, while the roundness and cylindricity are ≤0.003mm, and the surface roughness is from Ra0.1μm to Ra0.8μm. A combination process of precision turning, precision milling and precision grinding is adopted. The cylindrical accuracy of turning is 0.002mm, the planarity of milling is 0.005mm, and the grinding results in a Ra0.1μm mirror-like surface effect. Precision micrometers with an accuracy of 0.001mm, height gauges with an accuracy of 0.0001mm, and roundness gauges with an accuracy of 0.0001mm are used to ensure the dimensional accuracy.

dimensional accuracy	OD	ID	T（C）	DP	SH
unit:±/mm	0.002	0.003	0.005	0.005	0.005
Geometric accuracy	roundness	coaxiality	straightness	cylindricity	concentricity
unit:±/mm	0.001	0.004	0.002	0.003	0.005
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Heat treatment and hardness control

As a professional manufacturer of medical precision machining, Sanluo Precision Factory is equipped with vacuum heat treatment furnaces, ion nitriding furnaces and other facilities. For stainless steel, the solution treatment at 1050℃ with water quenching results in uniform austenite structure with a hardness of HRC 20-25. For titanium alloys, the annealing treatment at 700℃ with furnace cooling eliminates processing stress and has a hardness of HV 300-350. For tool steels, the quenching and tempering at 860℃ with oil quenching followed by 200℃ tempering results in high hardness (above HRC 58). In terms of non-destructive testing, ultrasonic flaw detection is used to detect internal defects (cracks, pores, inclusions), with a sensitivity of φ1mm equivalent.

Clinical validation supports

Sanluo Precision not only offers medical precision machining manufacturing services, but also assists customers in conducting pre-clinical validation. The samples are provided for use in biocompatibility evaluations, animal experiments, and clinical trials. Based on the feedback from the tests, the product design and processing techniques are improved. Process validation reports, technical document materials certificates, and test reports are provided for product registration applications. It has provided customized medical precision machining services for medical fields such as hemodialysis, respiratory anesthesia, and infusion and blood transfusion, and has served over 300 medical enterprises in total.

Equipment technical parameters

Parameter Categories	Parameter Details
Equipment Model	JDGR200T Four-axis High-speed Machining Center
Core Positioning	Designed for ultra-high precision micro-level processing, suitable for precision medical components
Numerical Control System	The independently developed JD50 numerical control system has a motion control resolution of 10 nanometers
Critical Accuracy	Stably achieving processing effects of "0.1μm feed, 1μm cutting, nm-level surface roughness"
Spindle System	Equipped with a special electric spindle specifically designed for precision machining, the maximum rotational speed can reach 32,000 rpm
Tool Magazine System	Configurable with chain-type mechanical hand tool magazines with capacities of 37 and 63 tools
Core Advantages	Equipped with in-machine measurement technology, capable of automatically detecting and compensating for errors, ensuring batch processing yield
Typical Applications	Medical precision machining components with strict requirements for size and surface quality, such as surgical instrument parts and orthopedic implants

Parameter Categories	Parameter Details
Equipment Model	NTX 500 Turning and Milling Combined Machining Center
Core Positioning	Horizontal/Vertical 3-axis multi-functional machining center, compact structure, suitable for medical and other industries
Travel (X/Y/Z)	X-axis: 375 mm, Y-axis: 150 mm, Z-axis: 610 mm
Spindle Speed	Optional speeds: 8,000 / 12,000 / 30,000 / 42,000 rpm
Processing Capacity	Maximum workpiece diameter: ø350 mm, Maximum bar diameter: ø65 mm
Tool Magazine Capacity	Standard 38-bit, optional 76-bit or 114-bit
Core Advantages	Can complete 6 surfaces of processing in one setup, the Y-axis stroke of the cutting tower reaches 60 mm
Typical Applications	Suitable for medical precision machining, molds and other industries for complex parts
