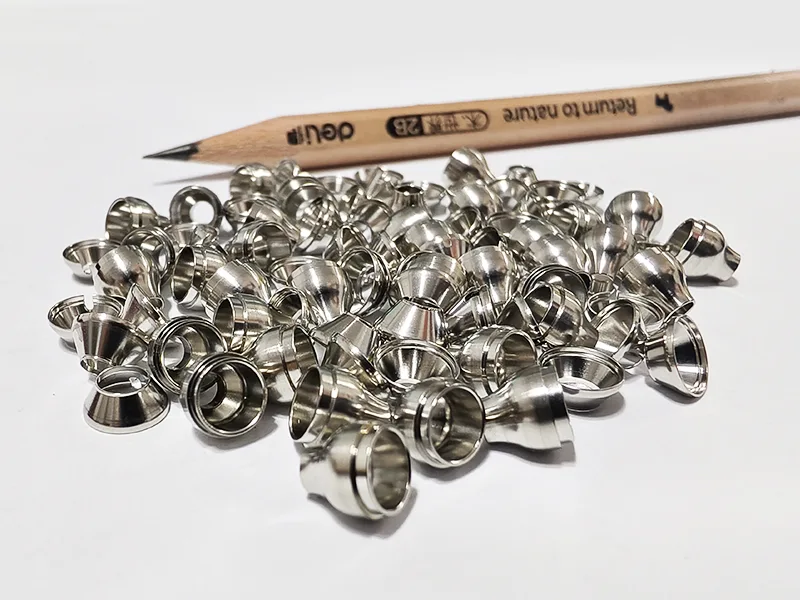

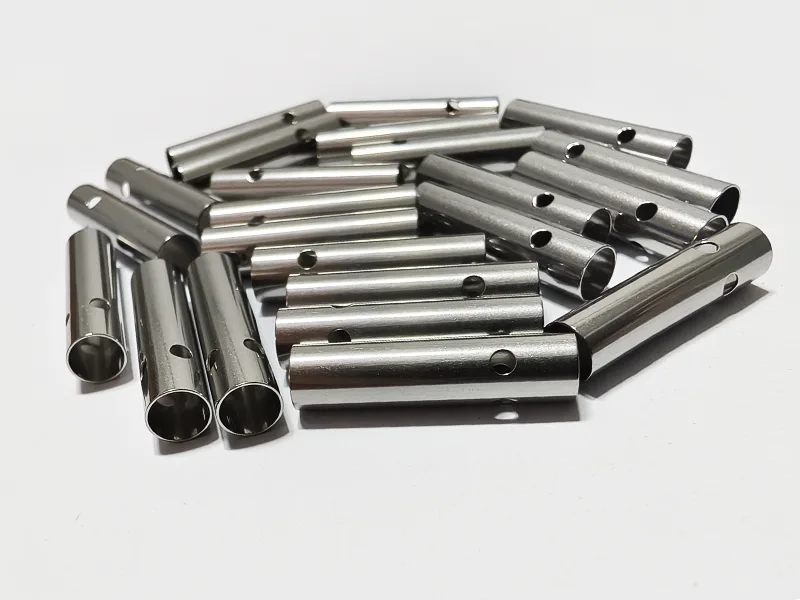

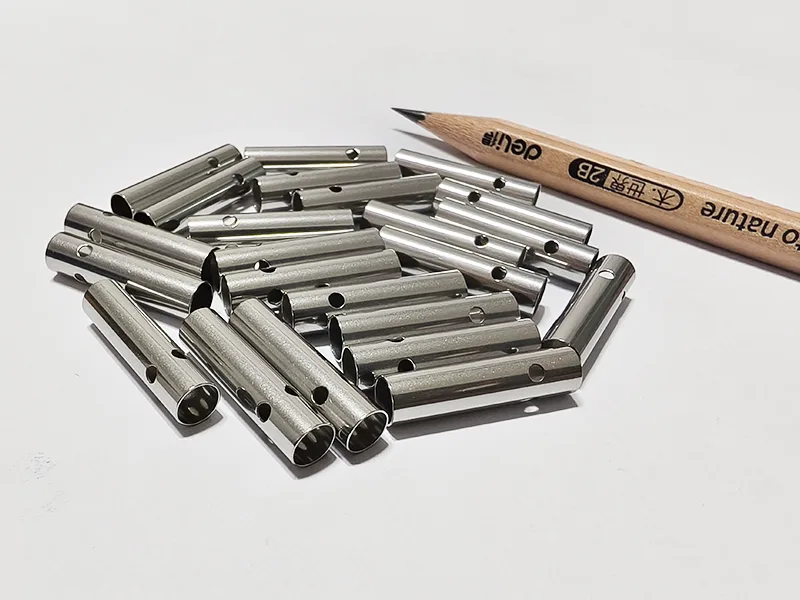

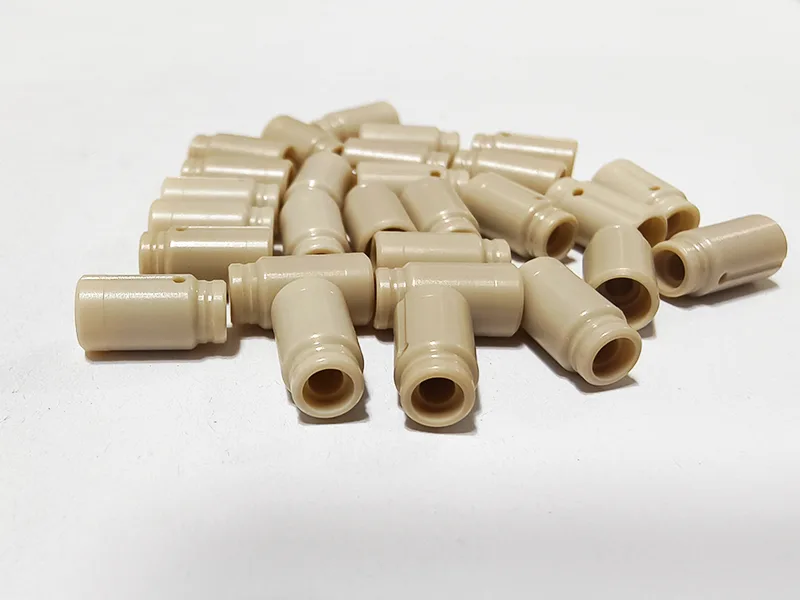

CNC Machining Medical Parts

Sanluo Precision is a professional CNC machined medical parts manufacturer and supplier in China. It possesses extremely advanced CNC machining medical parts technology and is capable of processing various complex medical component parts. According to the specific requirements of different medical parts, we offer professional customization services and supports the customization of complex and difficult parts.

Send Inquiry

Product Description

Classification processing strategy

The Sanluo Precision factory formulates corresponding strategies for different CNC machining medical parts. For structural components (such as shells and supports), high-speed milling is adopted. The cutting speed of aluminum alloy is 500 to 1000 m/min, resulting in good surface quality and high efficiency. For moving parts (such as shafts and gears), turning and grinding are used to ensure dimensional accuracy and surface roughness. The roundness is no more than 0.003 mm, and the Ra value is no more than 0.4 μm. For sealing components (such as O-ring grooves and sealing surfaces), precision boring is used to ensure sealing performance. The size tolerance is ±0.01 mm, and the surface roughness is Ra 0.8 μm. For optical components (such as lens seats and lens tubes), single-point diamond turning is used, with a surface roughness of Ra 0.02 μm, which is of optical grade.

Batch production management

Sanluo Precision has established a complete batch production management system, becoming a large-scale CNC machining medical parts processing factory. By adopting the lean production method, waste is reduced and delivery time is shortened. Unit manufacturing means completing all the processes of a type of part in one processing unit, thereby reducing transportation and waiting time. Implementing TPM comprehensive production maintenance enables the equipment's OEE (Overall Equipment Effectiveness) to exceed 85%. Using the kanban pull production method, production is carried out according to the customer's order cycle, and the inventory turnover rate is greater than 12 times per year. The first piece inspection confirms that the process parameters are correct, and process inspection is conducted twice per hour to control the dimensional stability. The final piece inspection verifies the quality of the batch products.

Supply Chain Collaborative Management

Sanluo Precision Company has established the supply chain collaborative management for CNC machining medical parts. And it collaborates through the VMI (Vendor Managed Inventory) method. The processing factory has provided professional customized CNC machining medical parts services for medical enterprises and medical consumables providers, and has also established a cooperative relationship.

Workstation Accuracy

dimensional accuracy	OD	ID	T（C）	DP	SW
unit:±/mm	0.002	0.003	0.005	0.005	0.003
Geometric accuracy	roundness	coaxiality	straightness	cylindricity	symmetry
unit:±/mm	0.001	0.004	0.002	0.003	0.008
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Technical Parameters

Parameter Categories	Parameter Details
Equipment Model	INDEX TNL32 Artistic-style Turning and Milling Combined Center
Core Positioning	High-precision and high-complexity processing of medical screws
Spindle Speed	Maximum 8,000 rpm
Spindle Inner Diameter	32 mm
Maximum Z-axis Travel	305 mm
Multi-tasking Capability	Up to 3 cutting tools can be processed simultaneously.
Machine Structure	The thermally symmetrical machine structure helps maintain high precision over a long period.
Core Advantages	Can be easily switched between the sliding spindle box and the fixed spindle box operation modes, with high flexibility.
Typical Applications	CNC machining medical parts such as high-end medical screws.

Parameter category	Parameter Details
Equipment model	Micro5
Core positioning	Micro-precision processing, high static stiffness
Number of axes	Three axes
Travel (X/Y/Z)	78 / 56 / 50 mm
Critical accuracy	X/Y/Z axis positioning accuracy < 0.002 mm, repeat positioning accuracy 0.0005 mm
Main shaft system	Maximum spindle speed 60,000 r/min
Automation and efficiency	Changeover time from one chip to another 3.5 s, tool magazine capacity 60 pieces; Feed5 handling system supports automatic loading and unloading
Core advantages	High-precision, high-static-stiffness five-axis linkage processing, compact structure, low energy consumption
Typical applications	Precision CNC machining medical parts, etc.
