Surface Grinding

Sanluo Precision is a professional manufacturer and supplier of surface grinding in China, with 18 years of technical accumulation in the field of precision precision grinding, providing customers with high-quality precision grinding services. For the high-precision requirements of machinery manufacturing, mold processing, precision instruments, cutting-edge scientific research and other fields.

Send Inquiry

Product Description

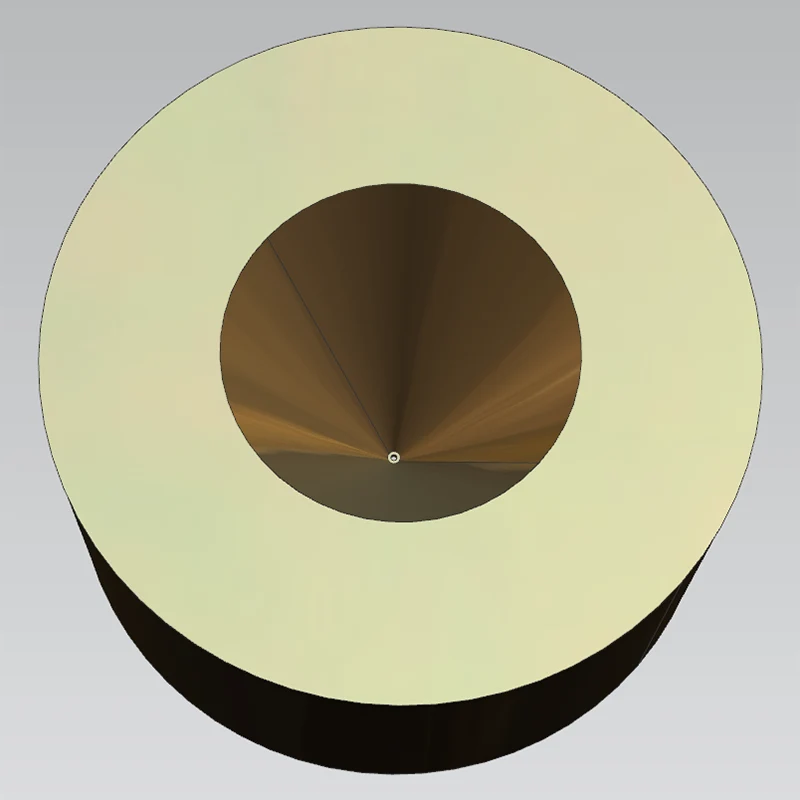

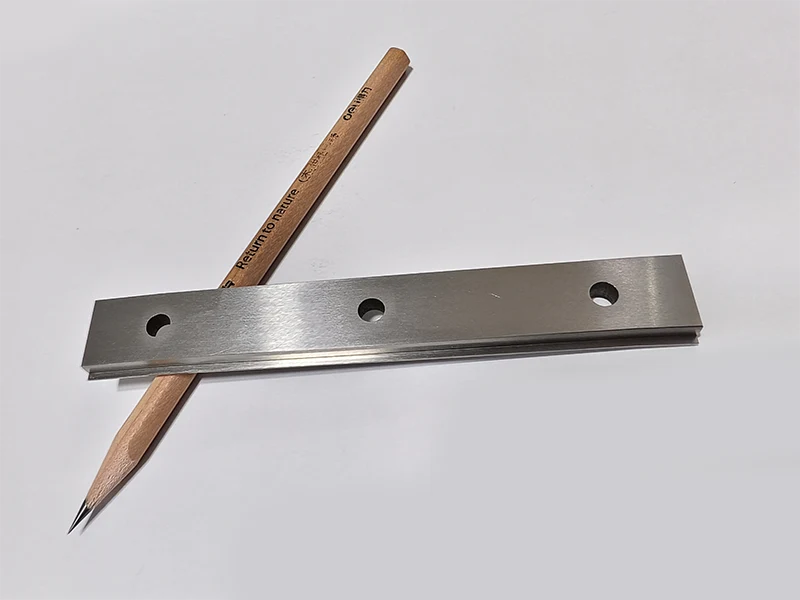

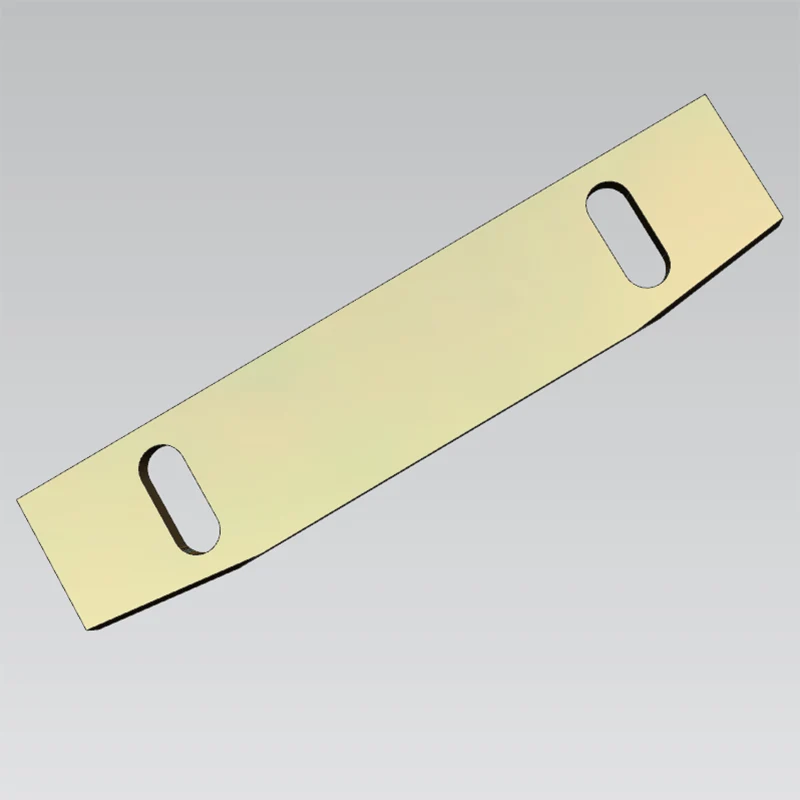

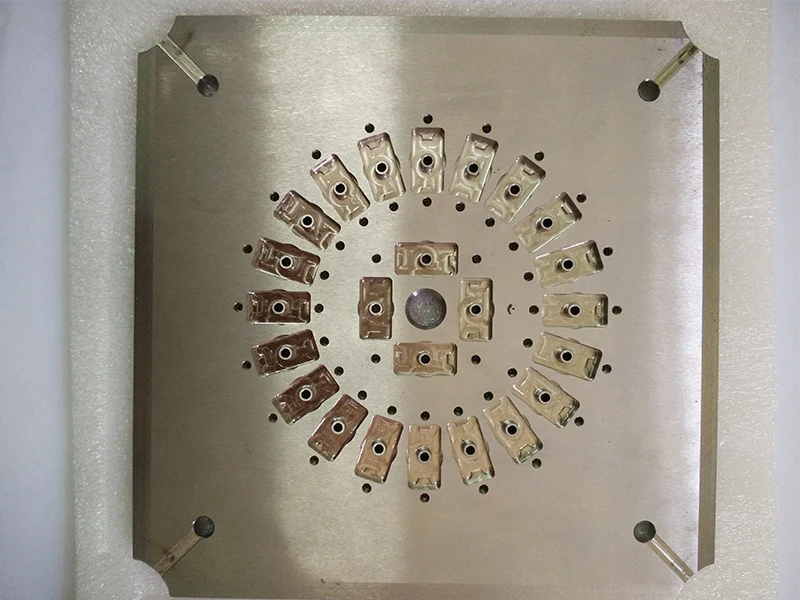

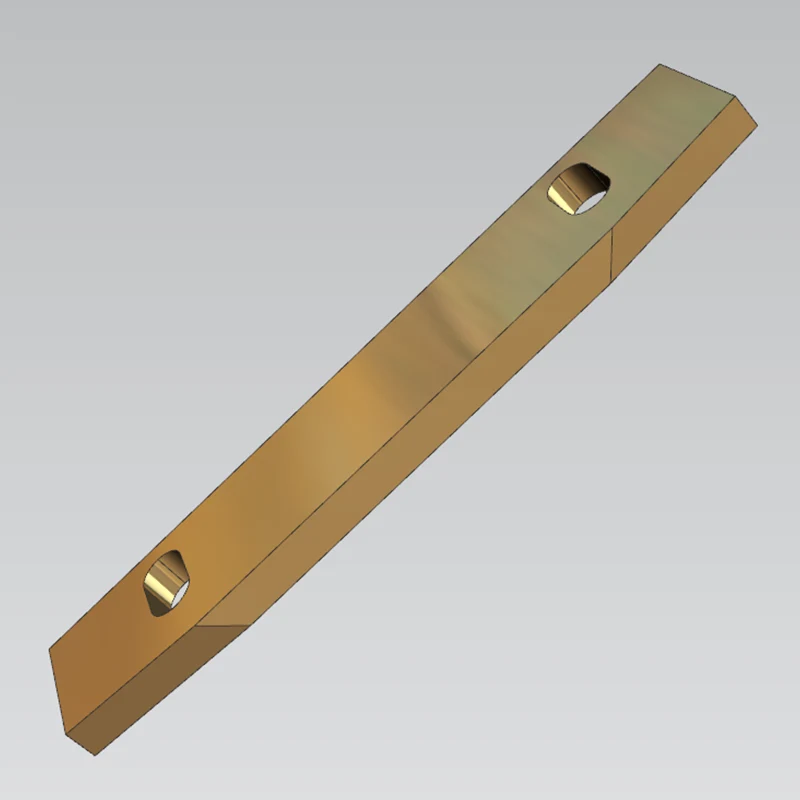

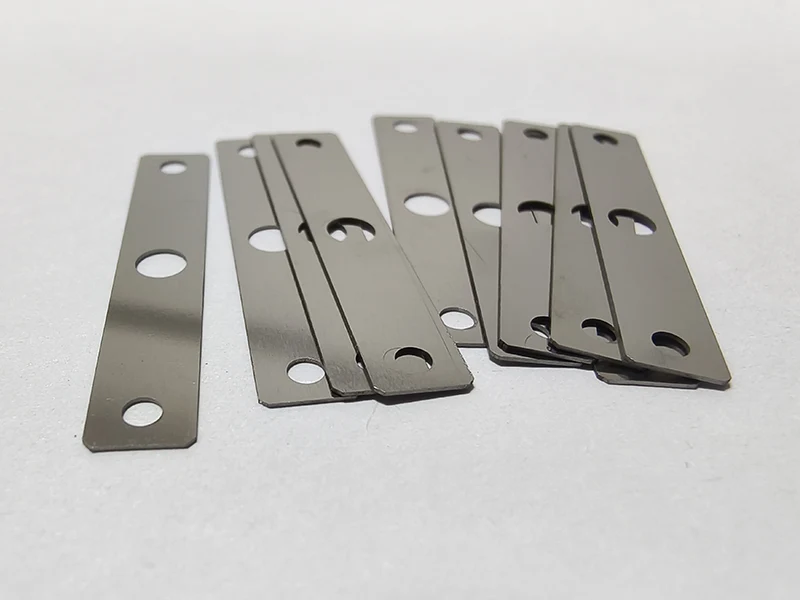

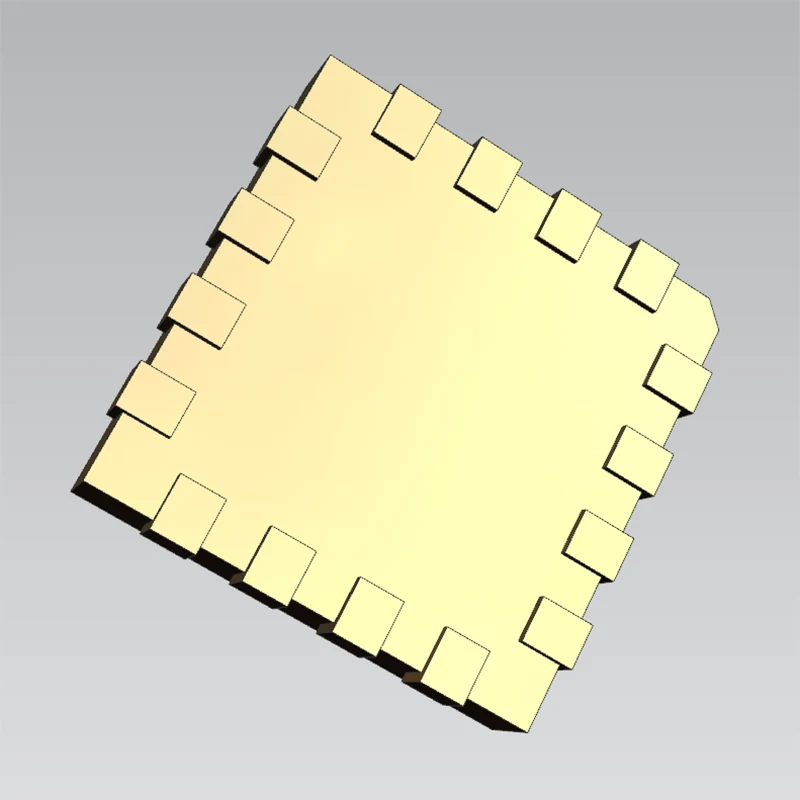

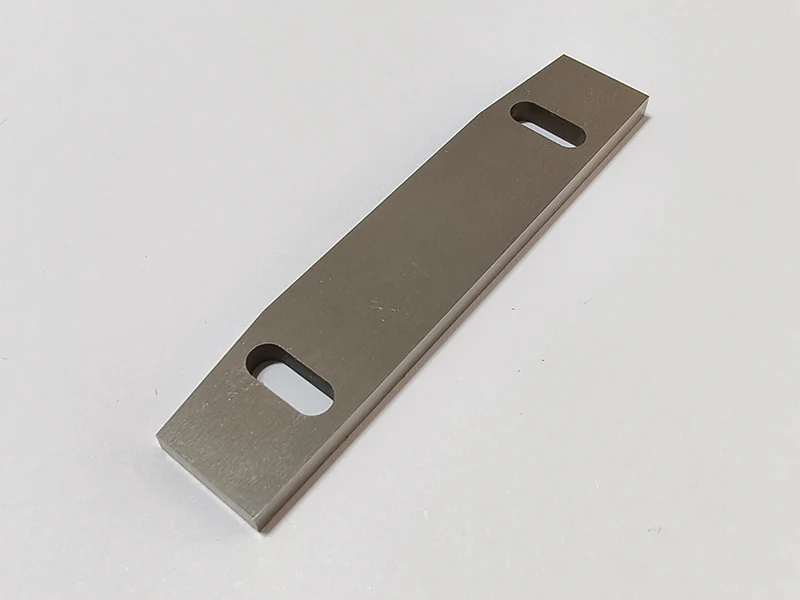

Sanluo Precision provides professional customized surface grinding services, supporting the customization of complex and difficult parts. High-precision plane processing with flatness 0.0005-0.002mm and roughness Ra0.02 can be realized, fully meeting the strict requirements of various industries for precision plane parts.

Station Accuracy

Dimensional accuracy	L（X）	W（Y）	H（Z）	SH	SW
unit:±/mm	0.0005	0.0005	0.0005	0.001	0.001
Geometric accuracy	Flatness	Parallelism	Perpendicularity	Roughness	Symmetry
unit:±/mm	0.001	0.001	0.001	Ra0.05	0.002
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Surface Grinding Technology

Sanluo Precision’s processing plant precision grinding process adopts advanced grinding technology, processing range includes parts with plane size 50mm to 3000mm and thickness 5mm to 500mm, single piece or batch can be processed. The processing plant is equipped with M7130-M7150 series precision surface grinders, imported OKAMOTO and other brand equipment and CNC automatic cycle system, grinding accuracy flatness can reach 0.0005mm, surface roughness Ra0.1μm. Processing accuracy: flatness 0.0005～0.005mm, parallelism 0.0001～0.001mm, perpendicularity 0.001～0.005mm, surface roughness Ra0.1～3.2μm.

Grinding Equipment Process

As a professional surface grinding manufacturer, Sanluo Precision strictly controls the grinding process: rough grinding single-side allowance 0.2～0.5mm, finish grinding single-side allowance 0.05～0.15mm, layered grinding to prevent burn deformation.

Precise control of grinding parameters, grinding wheel speed 1500～2500rpm, worktable speed longitudinal 10～20m/min, transverse 1～3m/min, grinding depth rough grinding 0.01～0.03mm/time, finish grinding 0.002～0.008mm/time.

Special grinding wheels are selected according to processing materials: white corundum grinding wheel (grain size 46-60#) for ordinary steel, brown corundum grinding wheel for cast iron and non-ferrous metals, CBN grinding wheel for hardened steel HRC50-65.

Grinding fluid concentration 3%～5%, flow 30～60 liters/minute, cooling workpiece to prevent thermal deformation and grinding wheel blockage. The company has provided customized precision grinding services for well-known enterprises such as LYC Bearing, XCMG, Gree, Midea, with an annual grinding of 200,000 plane parts, a pass rate of 99.5%, stable and reliable quality.

Technical Parameters

Core Features: Precision grinding, suitable for molds, optical components, adopts double V guide rail + servo motor drive, high accuracy, good surface quality.

Category	Parameters
Mechanical Specifications	- Worktable size: 450×150mm- Max. grinding size: 450×150×300mm- Max. load: 100kg- Grinding wheel size: φ200×φ31.75×50mm
Processing Performance	- Grinding wheel speed: 3600rpm- Up and down axis feed speed: 0.1-1000mm/min- Front and rear axis feed speed: 1-1000mm/min- Grinding accuracy: ±0.002mm (flatness)
Accuracy Index	- Positioning accuracy: ±0.001mm (full stroke)- Repeat positioning accuracy: ±0.0005mm (full stroke)- Surface roughness: Ra≤0.1μm (steel parts)
Others	- CNC System: Okamoto self-developed- Power: 2kW (spindle); 1.5kW (feed axis)- Features: Supports automatic cycle of rough grinding, finish grinding, light grinding
Typical Applications	precision parts surface grinding for high-end medical, semiconductor industry, optical industry

Parameter Category	Parameter Details
Equipment model	PLANOMAT XT Essential
Core Positioning	Universal high-precision surface and profile grinding for parts processing
Number of Axes	3-axis
Stroke (X-axis)	1,100 mm or 1,500 mm (optional)
Stroke (Y-axis)	800 mm
Spindle Speed	3,500 rpm
Spindle Power	11 kW
CNC System	Siemens MC 1720 control system with graphical operation guide
Bed Structure	Extremely rigid nodular cast iron components, all machine axes equipped with linear guide rails
Core Function	Reciprocating grinding, creep feed grinding
Typical Applications	precision parts surface grinding for high-end medical, semiconductor industry, optical industry

Parameter Item	Parameter Value
Brand/Model	Taiwan Chunli / JL-618
Equipment Type	Surface Grinding Machine
Control Mode	Manual/Hand-operated
Worktable Area	150 mm × 465 mm
Maximum Grinding Area	150 mm × 450 mm
Maximum Grinding Diameter	150 mm or 472 mm
Maximum Worktable Stroke	175 mm × 472 mm
Maximum Distance from Grinding Wheel Spindle to Worktable	400 mm or 450 mm
Grinding Wheel Size (OD × Thickness × Hole Diameter)	180 mm × 13 mm × 31.75 mm
Grinding Wheel Speed	2900/3500 rpm or 3000 rpm or 3600 rpm
Main Motor Power	1 kW, 1.5 kW (approx. 2 HP), 2 kW
Machining Accuracy	High precision, up to 2 microns
Spindle Shaft End Runout	≤ 0.003 mm
Machine Weight	Approx. 690 kg, 700 kg, 720 kg, 750 kg, 790 kg, 880 kg
Overall Dimensions (L×W×H)	1400 mm × 920 mm × 1850 mm
Typical Applications	precision parts surface grinding for medical and semiconductor
