Micro Laser Cutting

Sanluo Precision is a professional manufacturer and supplier of micro laser cutting in China, a domestic enterprise specialized in precision micro-cutting processing, providing customers with high-quality laser beam machining services. The company offers professional customized laser beam machining services for industries including electronic devices, precision machinery, medical implants and aerospace, and supports the customization of complex and difficult-to-process parts. We realize non-contact precision cutting of thin-walled, tiny and complex contours, fully meeting the stringent requirements of various industries for micro laser cutting.

Send Inquiry

Product Description

Micro Cutting Technology

The micro laser cutting technology adopted by Sanluo Precision's processing plant uses high-energy laser beams to cut tiny parts. Cutting principle: The focused laser beam scans along a set trajectory, melting and vaporizing the material instantaneously to form cutting seams. Non-contact processing: The laser has no physical contact with the workpiece and causes no mechanical stress, which is suitable for brittle materials and thin-walled parts. Heat-affected zone: <20μm, with minimal material deformation, applicable for heat-sensitive materials.

Workstation Accuracy

Dimensional Accuracy	OD	ID	T（C）	DP	R
unit:±/mm	0.002	0.002	0.002	0.002	0.002
Geometric accuracy	roundness	coaxiality	straightness	cylindricity	profile tolerance
unit:±/mm	0.002	0.005	0.002	0.008	0.002
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Cutting Process Optimization

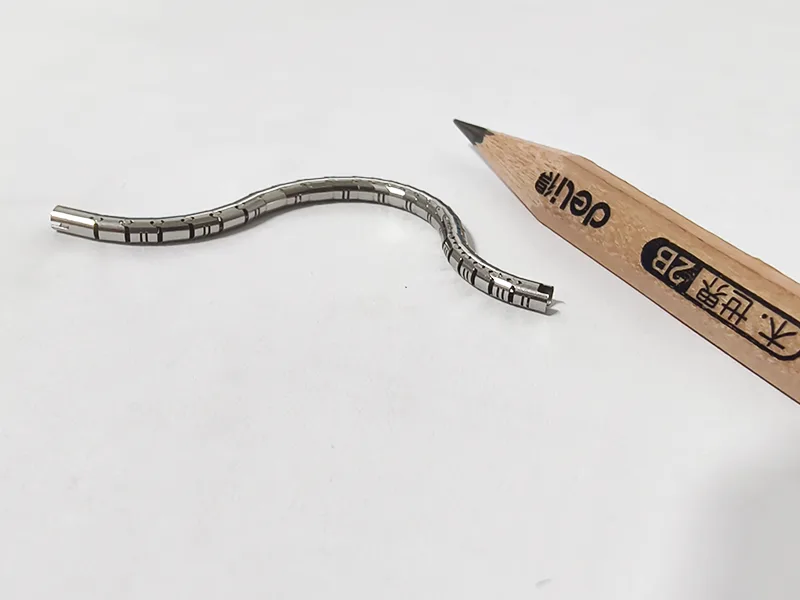

As a professional micro laser cutting manufacturer, Sanluo Precision has refined and optimized its processing techniques. Nitrogen is used as shielding gas to prevent oxidation, ensuring flat and smooth cutting edges; oxygen is applied for combustion supporting to accelerate cutting speed; compressed air is an economical and practical option. Multi-pass cutting is adopted: rough cutting for rapid penetration, and finish cutting to ensure precision and improve surface quality. Profile recognition: CCD visual positioning automatically identifies the workpiece position and compensates for deviations with an accuracy of ±2μm. We provide special-shaped cutting of spring steel sheets, laser cutting of coronary stents for medical implants (tube wall 50～100μm, groove width 30～80μm, burr-free), and laser cutting of nickel-titanium alloy guide wires. For aerospace industry, we realize titanium alloy thin plate cutting (thickness 0.1 - 1mm) with vertical cutting edges without dross, as well as honeycomb structure cutting. Sanluo Precision has provided customized laser beam machining services for enterprises such as Foxconn, BYD, MicroPort Medical and AVIC, processing 2 million parts annually with stable quality and on-time delivery.

Equipment Technical Parameters

Parameter Category	Parameter Details
System Composition	Combination of GFF2101F (automatic focusing 3D laser cutting head) and GF102 (robot small contour interpolation subsystem)
Core Positioning	For high-precision cutting of 3D small contours, such as tiny parts of implantable devices like pacemakers
Axis Number	Multi-axis robot system (integrated with 3-axis cutting head)
Focusing Performance	GF101F automatic focusing range -5mm ~ +5mm, focusing accuracy 0.05mm
Cutting Accuracy	The combination enables ultra-high precision contour cutting (e.g., accuracy up to ±0.003mm when cutting a 1mm-diameter circle)
Subsystem Accuracy	GF102 repeat positioning accuracy ±0.0005mm, positioning accuracy ±0.001mm
Core Advantages	Robot integration provides extremely high motion freedom (suitable for complex 3D path processing); automatic focusing function adapts to processing materials of different thicknesses
Typical Application	precision micro laser cutting components, etc.

Parameter Category	Parameter Details
Equipment Model	YAC-FSLLC300 Ultra-fast Femtosecond Laser Cutting Machine
Core Positioning	Specialized for laser micro-processing of precision thin-walled tubes such as medical stents
Axis Number	4-axis motion: X-axis (linear), Z-axis (linear), θ-axis (rotary)
Key Accuracy	Cut kerf width: 15-25 μm; X-axis positioning accuracy: ±0.1 μm; X-axis repeat positioning accuracy: ±0.2 μm
Motion System	Maximum X-axis running speed 500 mm/s
Material Adaptability	Supports 316L, Nitinol (Ni-Ti), L605, degradable metals (Mg, Zn) and polymer materials (PLA, PLLA), etc.
Laser	Femtosecond laser, optional infrared (1030-1070nm) or green light (532nm), with optional power of 10W/16W/20W
Typical Application	precision micro laser cutting components, etc.
