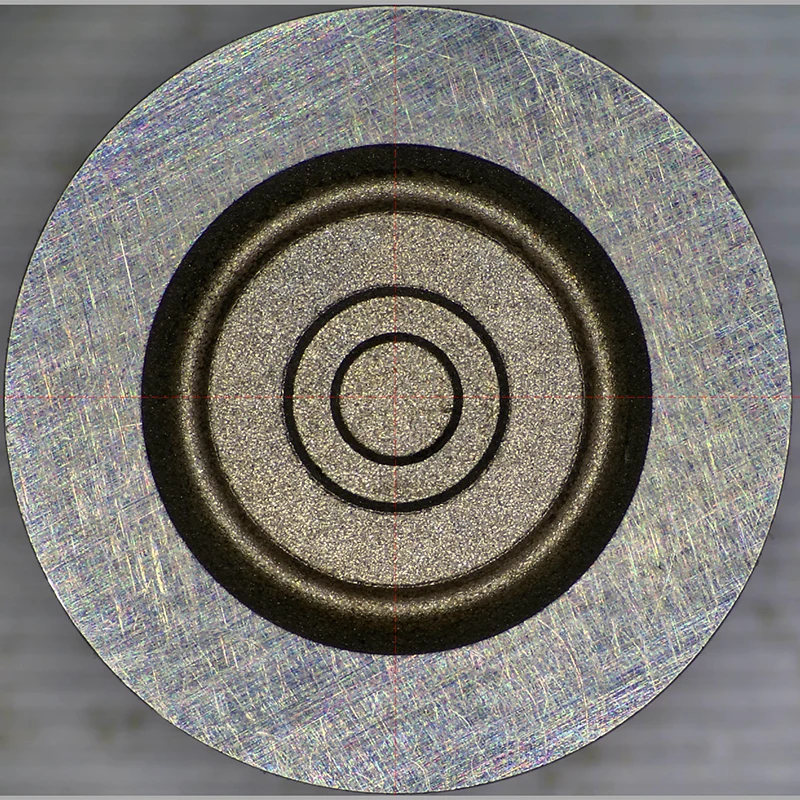

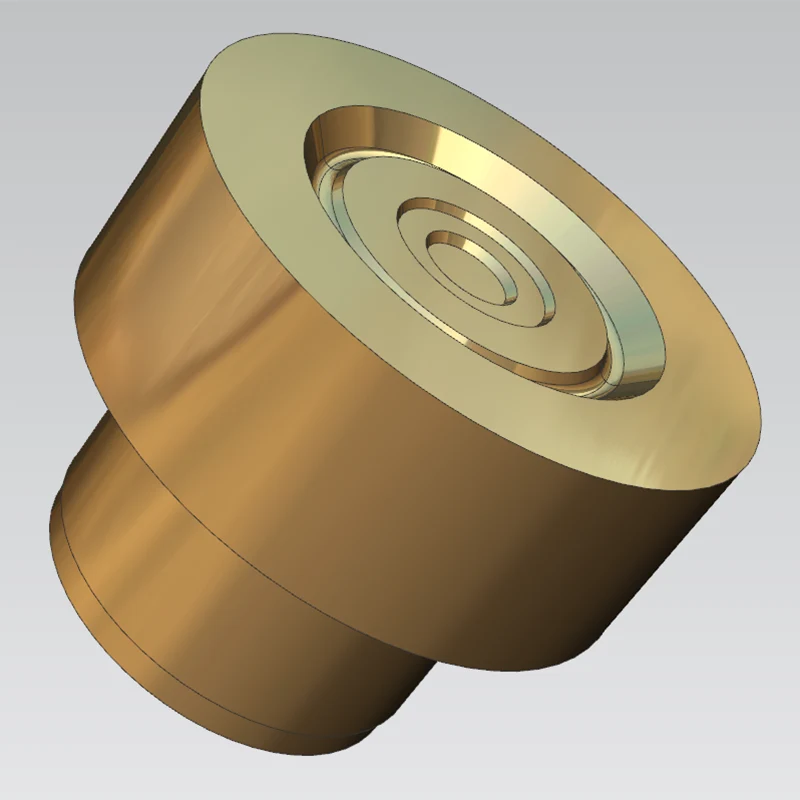

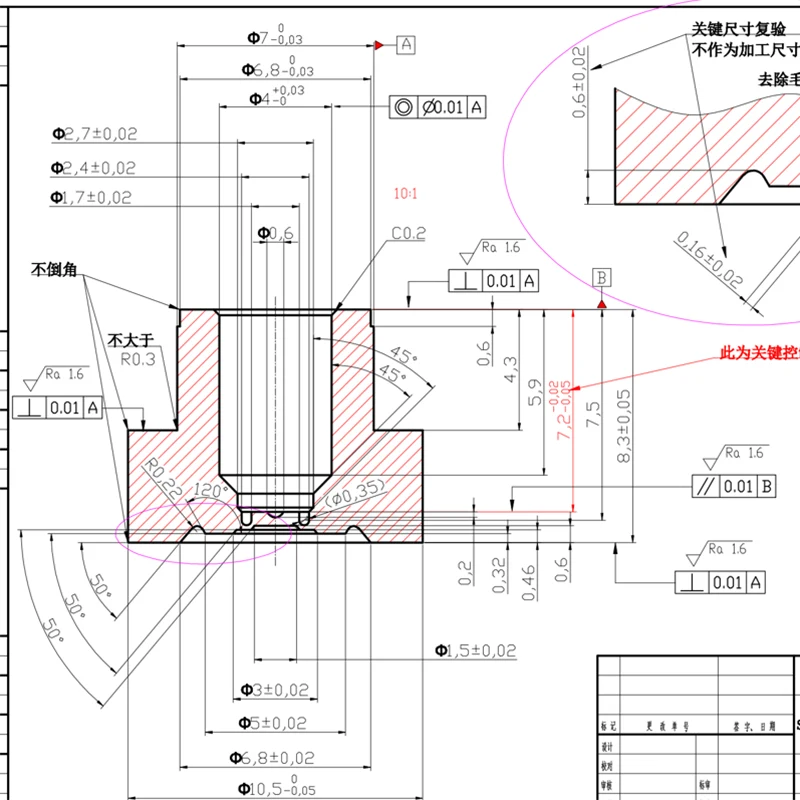

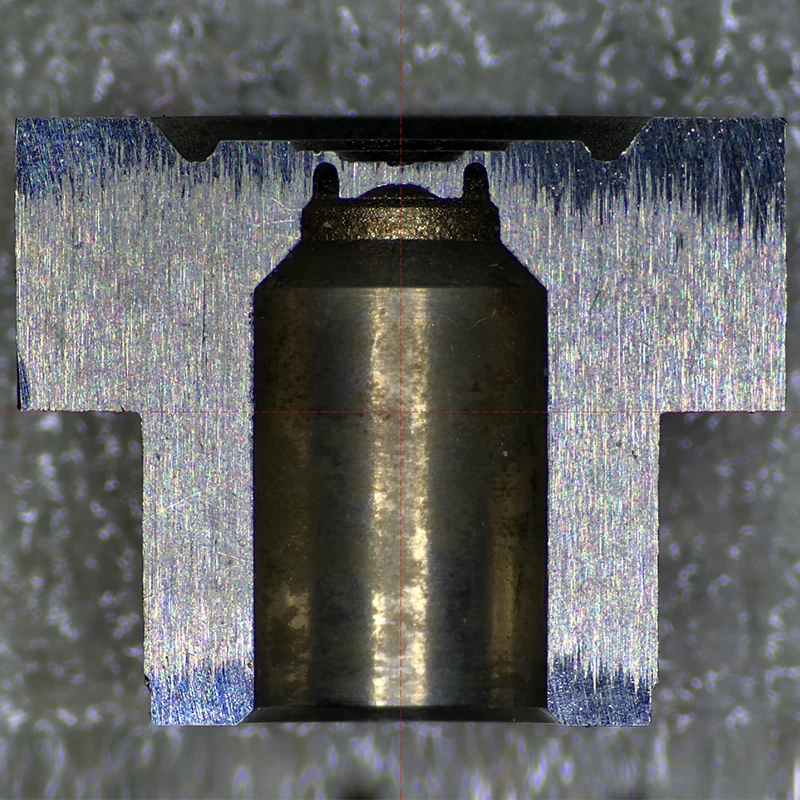

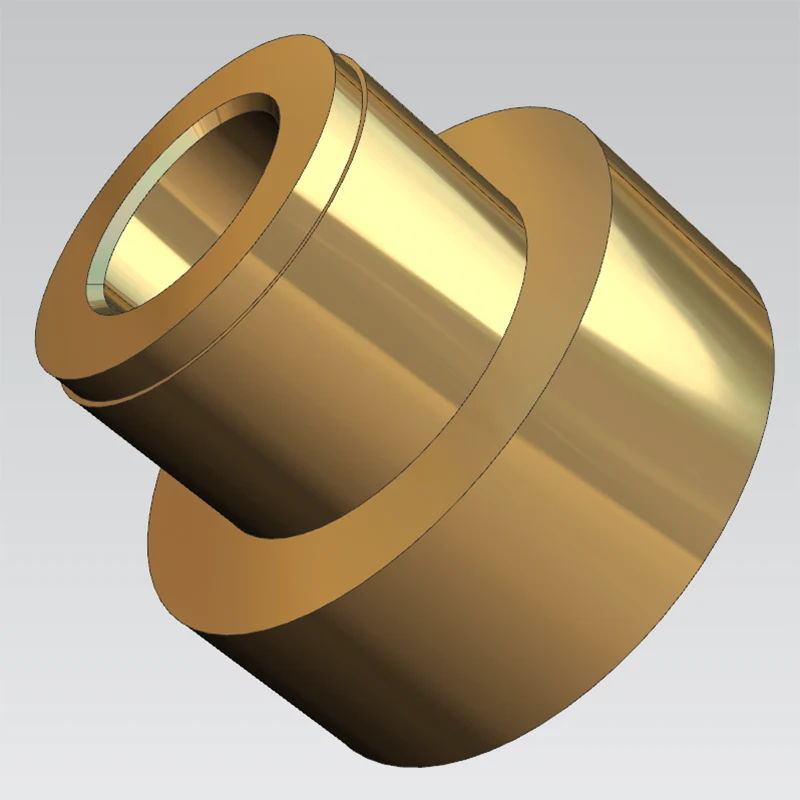

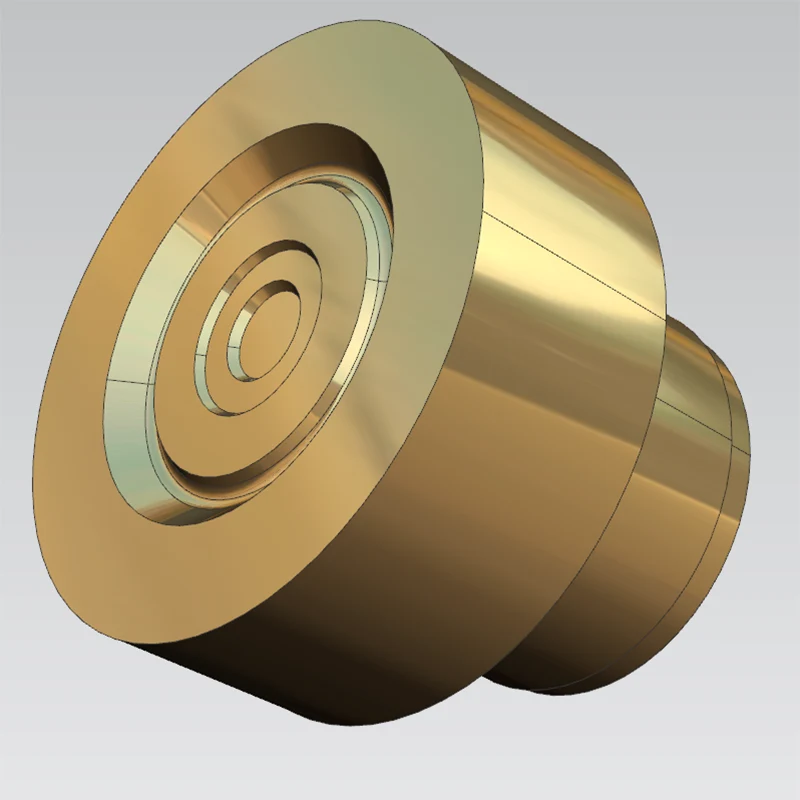

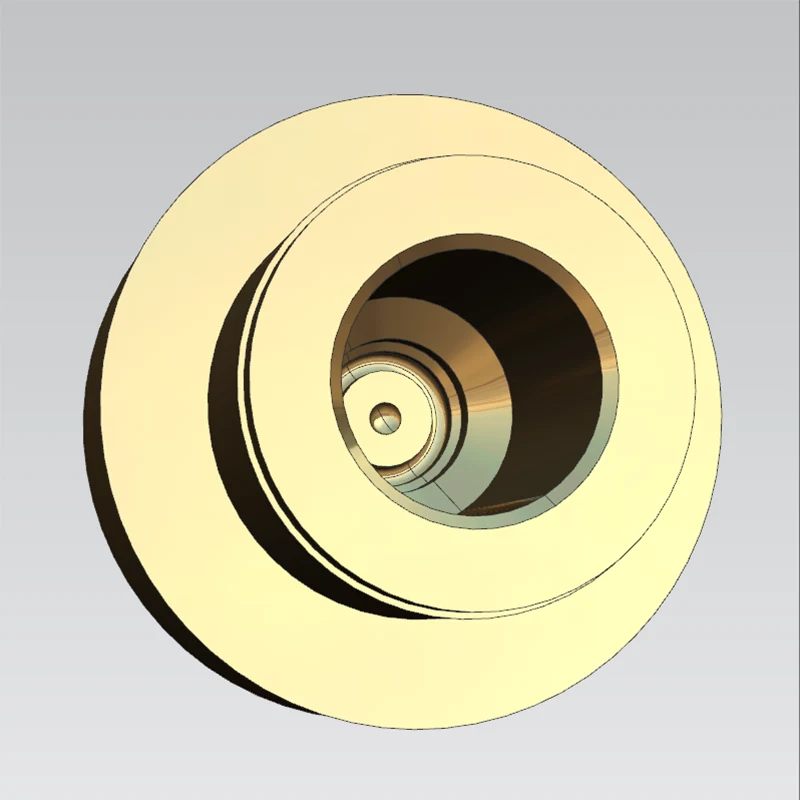

Electrical Discharge Machining

Sanluo Precision is a professional manufacturer and supplier of EDM machining in China. We have focused on EDM technology for 15 years, providing customers with high-quality electrical discharge machining services. We offer professional customized EDM machining services for mold manufacturing, precision machinery, aerospace, semiconductor industry and other fields, supporting the customization of complex and difficult parts. From simple cavities to complex surfaces, from rough machining to finish machining, it fully meets the strict requirements for precision forming of various difficult-to-process materials.

Send Inquiry

Product Description

Wide Applicable Materials

Electrical discharge machining has unique advantages for superhard materials: mold steel and tool steel with hardened steel HRC55-65, which are difficult to process by conventional cutting, can be easily completed by EDM; cemented carbide YG and YT with hardness HRA85-92, precisely formed by EDM; titanium alloy TC4 with poor thermal conductivity and serious work hardening, no cutting force and no deformation by EDM; nickel-based superalloy GH4169 with good heat resistance and difficult cutting, high efficiency by EDM; stainless steel, copper alloy, conductive ceramics and other materials can be processed. Processing objects: mold cavity, narrow slit, special-shaped hole, complex surface.

Station Accuracy

Dimensional accuracy	OD	ID	DP	SW	GD
unit:±/mm	0.002	0.005	0.005	0.005	0.002
Geometric accuracy	Roundness	Coaxiality	Cylindricity	Symmetry	Position tolerance
unit:±/mm	0.002	0.005	0.008	0.01	0.01
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Equipment and Process Capacity

Sanluo Precision’s processing plant has a complete electrical discharge machining equipment system. EDM sinking machine: machining depth ≤500mm, electrode loss <0.3%, surface roughness Ra0.4-3.2μm, machining accuracy ±0.005-0.01mm. Small hole EDM: machining hole diameter φ0.3-3mm, depth-diameter ratio ≥50:1, hole position accuracy ±0.01mm. Mirror EDM: surface roughness Ra0.05-0.2μm, no subsequent polishing required. Electrode materials: copper electrode, graphite electrode, tungsten-copper electrode, selected according to workpiece material and accuracy requirements. Working fluid: kerosene-based or water-based medium to ensure stable processing. As a professional EDM machining company, Sanluo Precision has obvious technical advantages. Strict Quality ControlQuality control: electrode design with CAD/CAM software to ensure shape accuracy; rough machining with high current for efficient material removal, finish machining with low current to ensure surface quality and dimensional accuracy; discharge gap monitoring during processing, automatic compensation for electrode loss; cavity size measurement by CMM and surface quality inspection by roughness meter after processing; for workpieces with requirements on metamorphic layer thickness, wire-cut EDM and grinding can be combined to remove the metamorphic layer. The company has provided customized electrical discharge machining services for automotive molds, plastic molds, die-casting molds, powder metallurgy molds, etc., with an annual processing of more than 5,000 sets of cavities and a customer satisfaction rate of 98%.

Technical Parameters of Machining Equipment

Parameter Category	Parameter Details
Equipment model	SX-100HPM
Core Positioning	High-precision 3D micro EDM milling, micro-dent processing
Number of Axes and Stroke	X/Y/Z/Z2 axis stroke: 250x150x150x150 mm
Key Accuracy	Positioning accuracy ±2μm, resolution 0.1μm
Micro Machining Capability	Able to process the smallest Φ0.01mm (10μm) micro holes
Spindle Feed Rate	Max. Z-axis 650 mm/min; Max. X/Y-axis 800 mm/min
Core Advantages	Equipped with on-line micro electrode preparation and laser measurement functions; can be used as CNC micro EDM milling machine
Typical Applications	precision electrical discharge machining parts, etc

Parameter Category	Parameter Details
Equipment model	A35LBs
Core Positioning	High-efficiency automated flexible production
Number of Axes and Stroke	5-axis CNC (adaptable to core 3-axis functions). X/Y/Z axis stroke: 350×250×270mm
Drive Technology	Linear motor drive, high motion accuracy and response performance
Core Advantages	Standard equipped with new discharge stable processing system Arc-less Plus, shortening processing time; automatic lifting of processing tank, can form flexible workstation and automated production line with SZ20
Working Capacity	Max. electrode weight 50kg; Max. workpiece weight 550kg
Typical Applications	precision electrical discharge machining parts, etc
