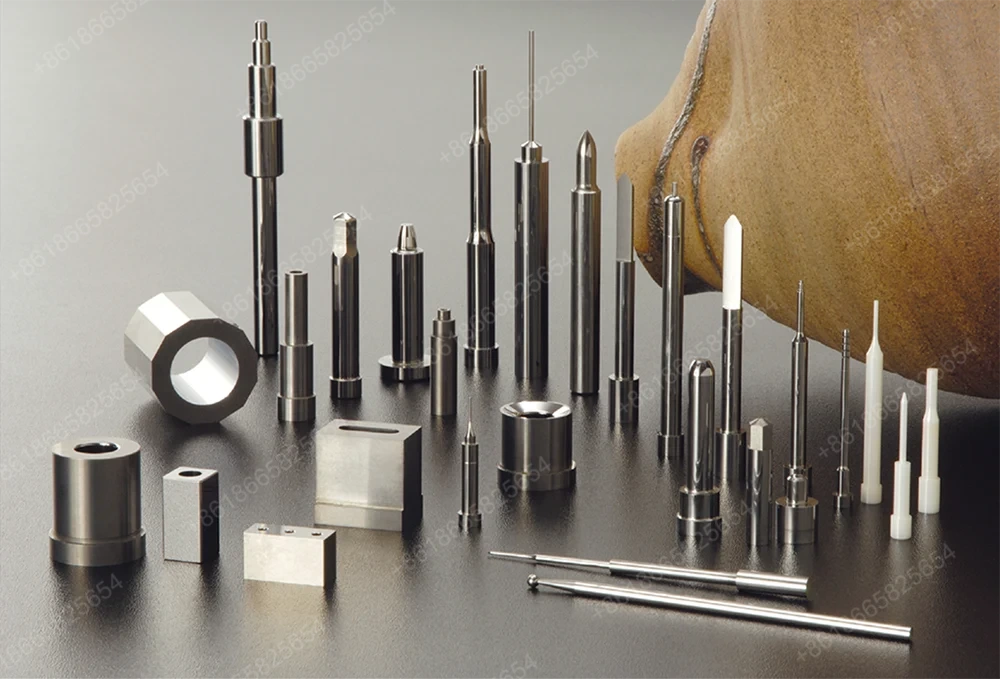

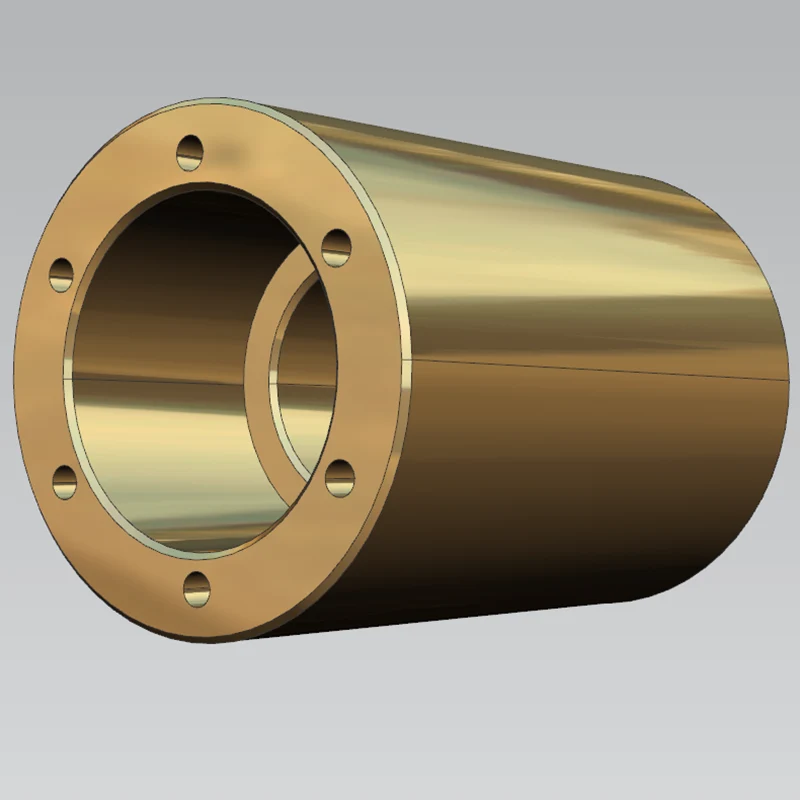

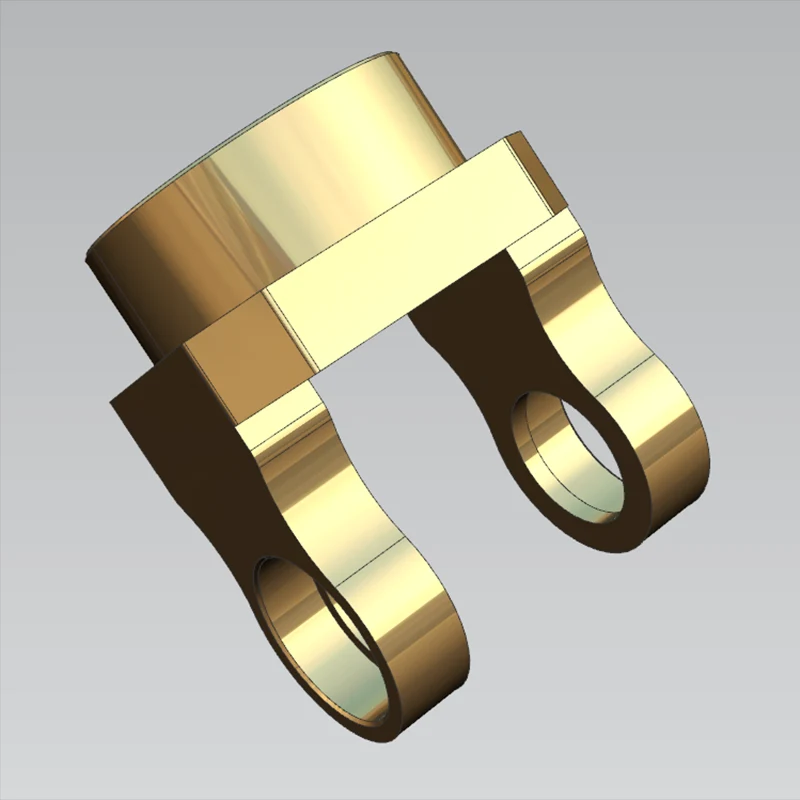

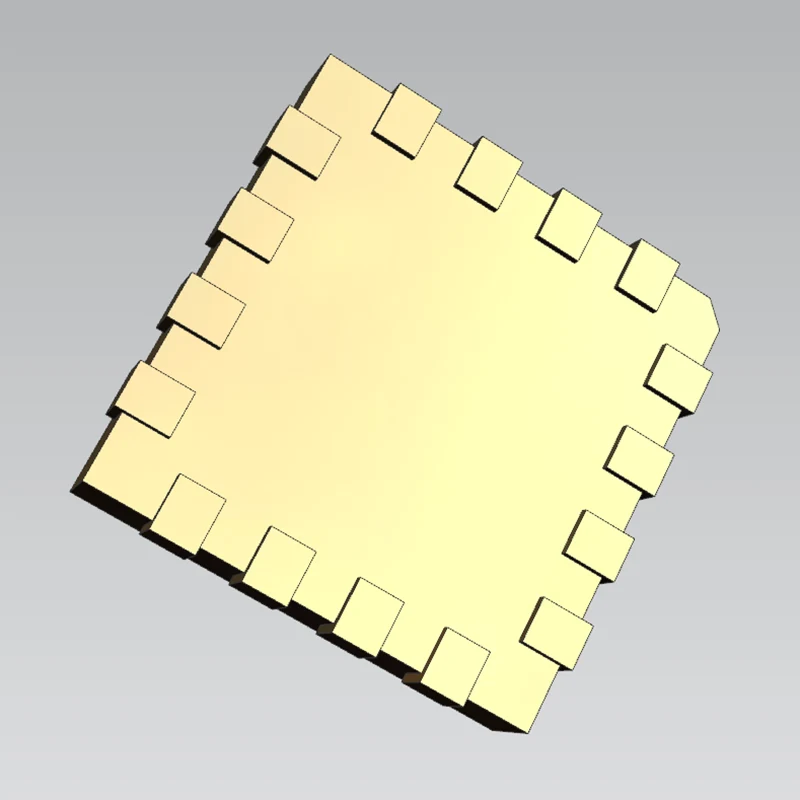

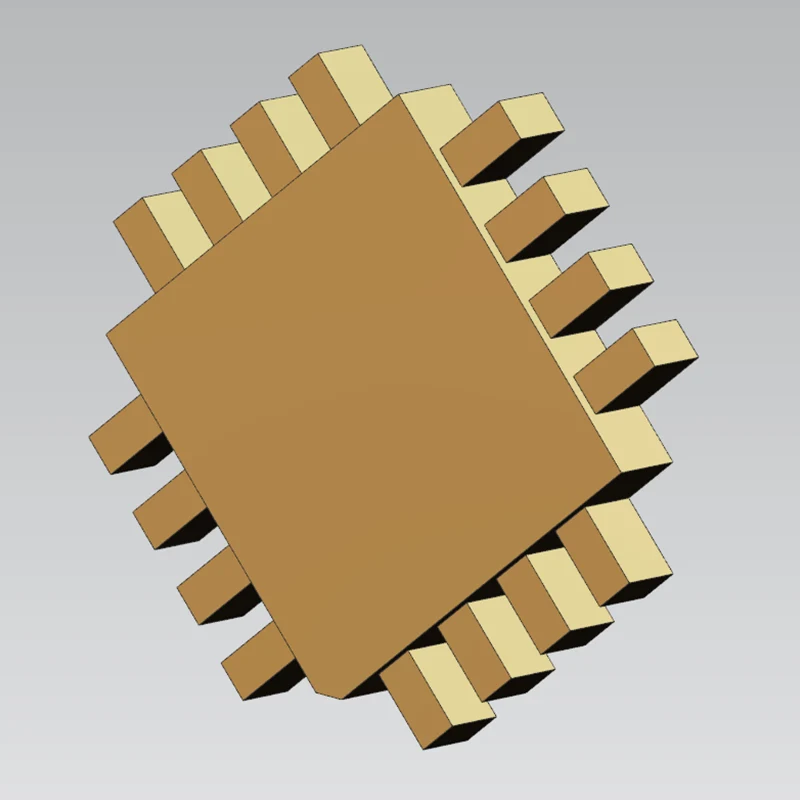

High Tolerance Machining

Sanluo Precision is a professional manufacturer and supplier of high tolerance machining in China, focusing on the machining of parts with strict tolerances and providing customers with high-quality services. We provide professional customized high precision machining services for precision machinery, semiconductor manufacturing, mold manufacturing and other industries, and support the customization of complex and difficult parts. We can meet the high tolerance accuracy requirements of IT0-IT8 grade, fully complying with the strict standards of high-end manufacturing industry for high tolerance machining.

Send Inquiry

Product Description

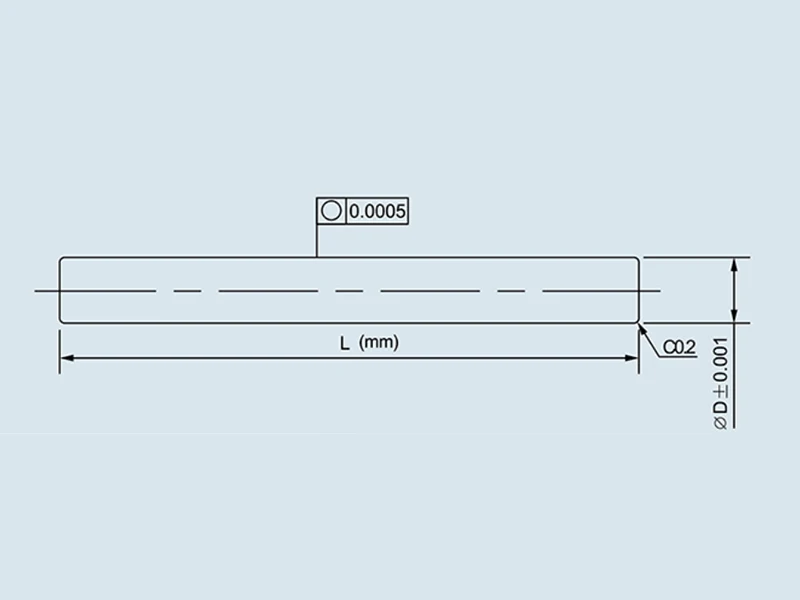

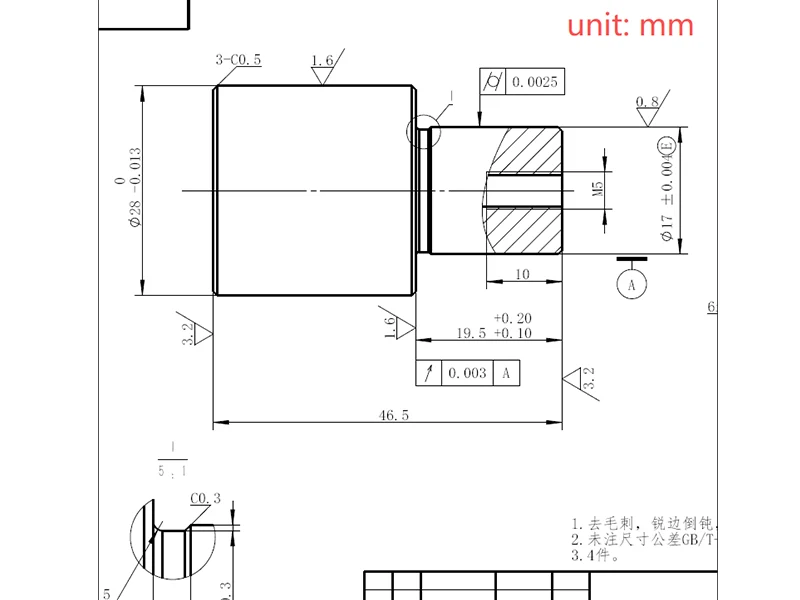

High Tolerance Technology

Sanluo Precision's high tolerance machining features precise control of high tolerance grades: IT2 grade tolerance ±0.001-0.004mm (suitable for high-precision fit), IT3 grade tolerance ±0.001-0.006mm (suitable for precision fit), IT4 grade tolerance ±0.002-0.01mm (suitable for general precision parts), IT5 grade tolerance ±0.003-0.015mm (suitable for ordinary precision parts). Fit types include: clearance fit H7/h6 with clearance 0.002-0.015mm, transition fit H7/k6 with accurate positioning, interference fit H7/p6 with interference 0.005-0.025mm. Size range: diameter φ0.03-800mm, length ≤2000mm, aperture φ0.02-500mm. Machining allowance is progressive in layers: rough machining 0.02-0.05mm, semi-finishing 0.05-0.1mm, finishing 0.001-0.003mm, grinding 0.001-0.005mm.

dimensional accuracy	L（X）	W（Y）	H（Z）	SW	GD
unit:±/mm	0.001	0.0005	0.0001	0.002	0.001
Geometric accuracy	flatness	parallelism	perpendicularity	symmetry	Position tolerance
unit:±/mm	0.0003	0.001	0.001	0.002	0.002
production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

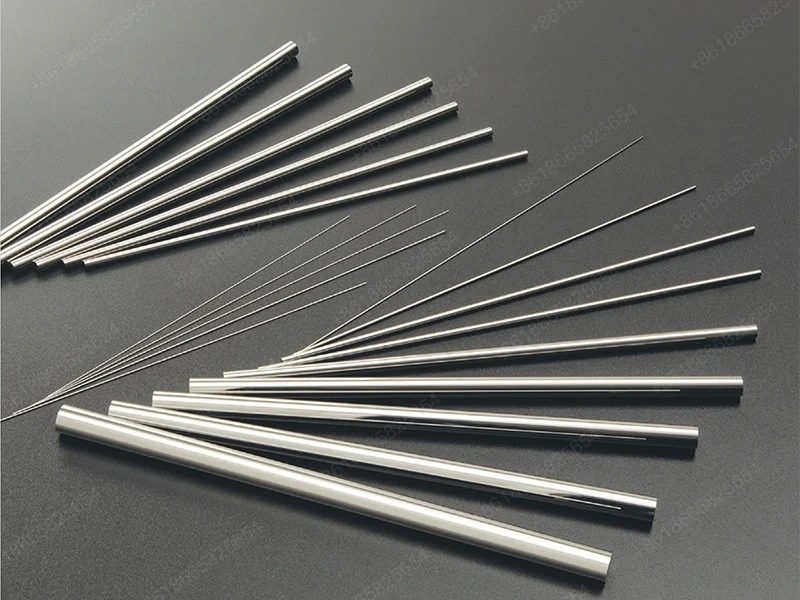

Wide Application Fields

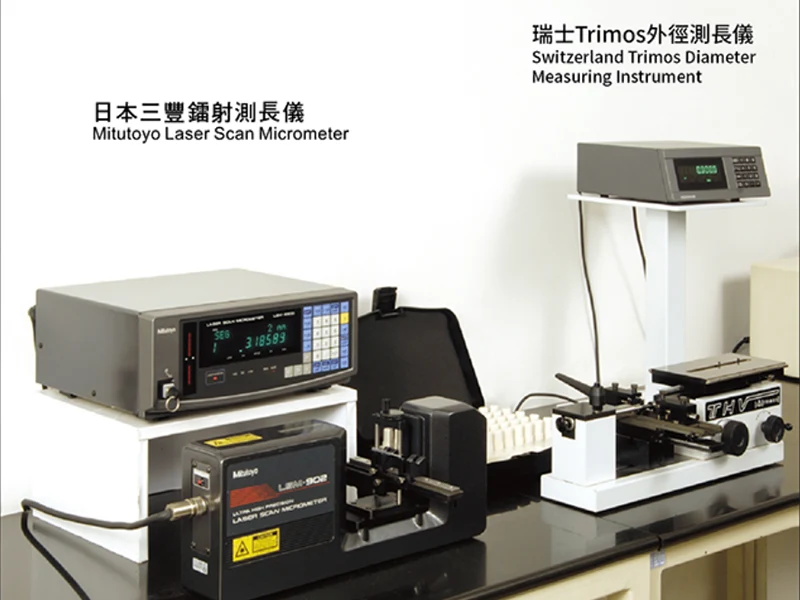

As a professional processing plant of high tolerance machining, Sanluo Precision is equipped with precision testing equipment: general measuring tools such as laser instrument/ultra-precision micrometer/micrometer/internal micrometer/vernier caliper, special measuring tools such as smooth limit plug gauge/ring gauge, CMM with accuracy 0.002mm, roundness meter with accuracy 0.0005mm. Adopt SPC process control, X-R control chart, CPK≥1.33 for qualification, 100% inspection of key dimensions. Application fields: automotive industry (engine block cylinder bore IT7 grade ±0.008mm, crankshaft main journal IT6 grade ±0.005mm, gearbox gear shaft tooth profile tolerance IT6 grade), precision machinery (reducer planetary gear pitch tolerance ±0.01mm, ball screw lead accuracy IT5 grade), mold manufacturing (injection mold core tolerance ±0.01mm, stamping mold guide pillar and bushing fit H7/h6), hydraulic system (hydraulic pump plunger IT6 grade ±0.004mm, hydraulic cylinder piston IT7 grade fit clearance 0.02-0.05mm). We have provided customized high precision machining services to FAW, Dongfeng, Weichai, Fast, XCMG, Zoomlion and other enterprises, with an annual output of 3 million high tolerance parts and a tolerance qualification rate of 99.5%.

Equipment Technical Parameters

Parameter Category	Parameter Details
Equipment Model	iQ500
Core Positioning	Large precision micro milling machine, suitable for high tolerance machining
Axis Number	3-axis
Stroke (X/Y/Z)	600 mm / 500 mm / 300 mm
Spindle System	45,000 rpm high-speed electric spindle, HSK-E32 interface
Key Accuracy	Submicron-level machining accuracy and repeatability accuracy
Motion Performance	Rapid traverse speed of each axis 16,000 mm/min
Tool Magazine System	20 tool positions tool magazine
Core Advantage	Adopts linear motor design and advanced temperature control to provide accurate and predictable machining results
Typical Application	high tolerance machining of precision components

Parameter Category	Parameter Details
Equipment Model	Hardinge® T Series SP®
Core Positioning	Ultra-precision machining and hard turning
Axis Number	/
Tool Quantity	12 tools
Diameter	226.3 mm, 313.7 mm
Rotation Speed	4,000 rpm, 5,000 rpm, 6,000 rpm
Servo Channel	42 mm, 51 mm, 65 mm
Standard Power	11 kW, 15 kW, 26 kW
Overall Dimensions	Length: 2,489 mm, 3,257 mm; Width: 2,121 mm, 2,312 mm; Height: 2,089 mm, 2,123 mm
Weight	5,940 kg, 7,800 kg
Typical Application	high tolerance machining of precision components
