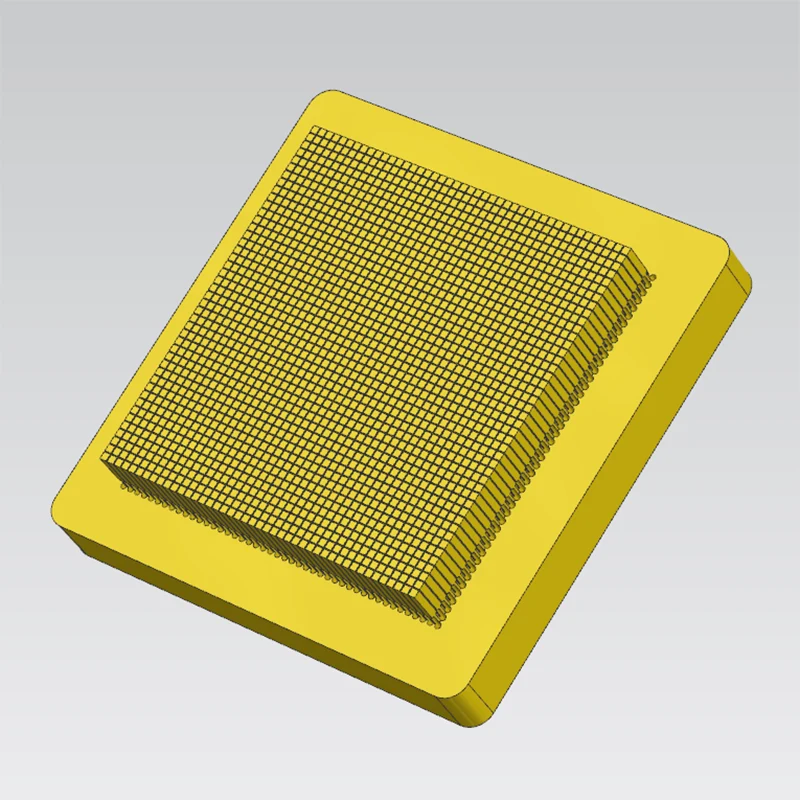

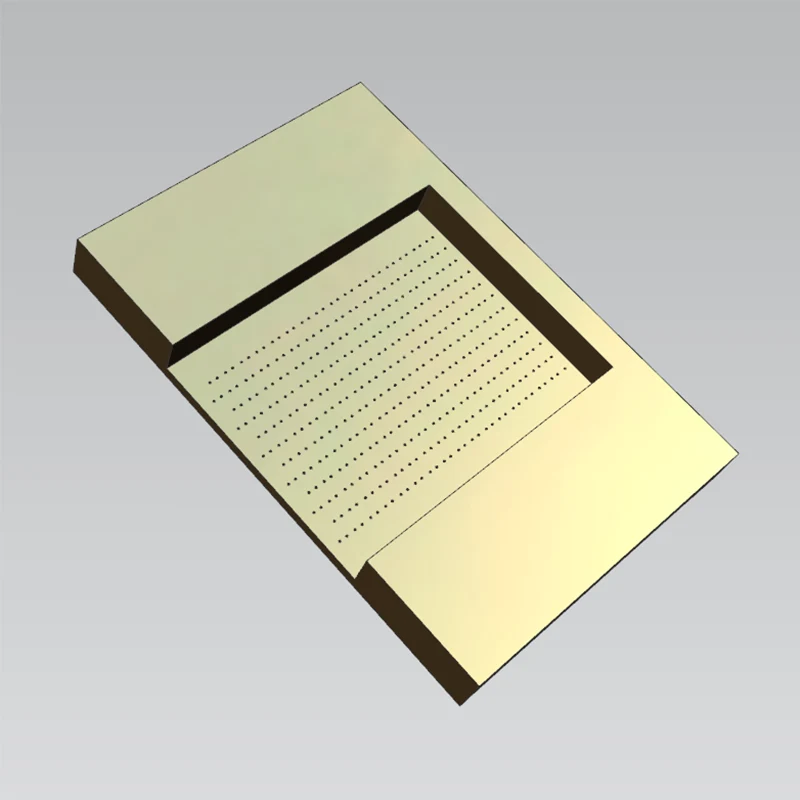

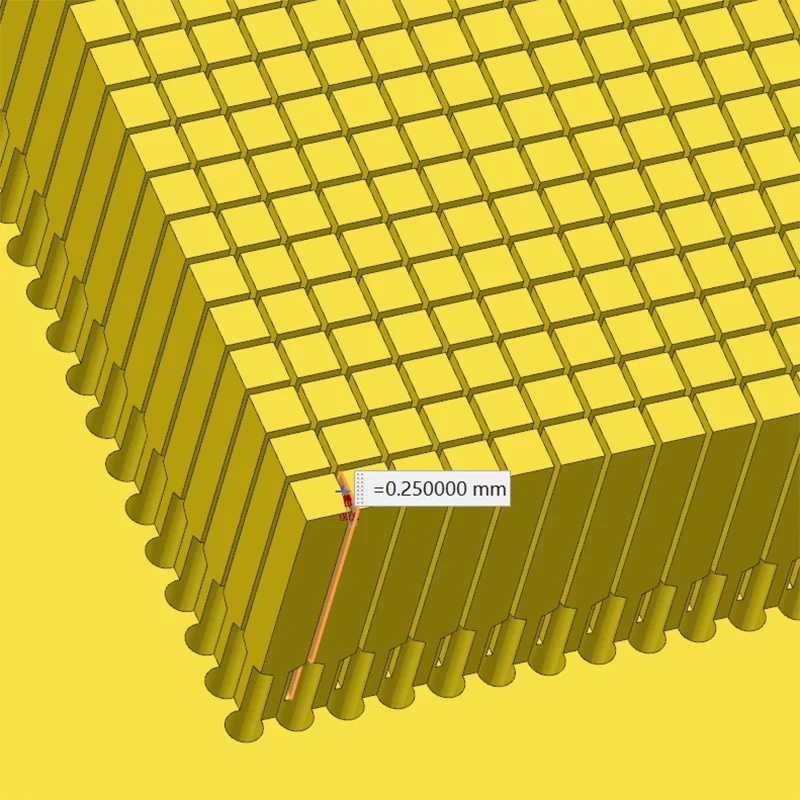

Wire Electric Discharge Machining

Sanluo Precision is a professional manufacturer and supplier of wire EDM in China, with more than 15 years of industry experience in Wire Electric Discharge Machining. We provide high-precision customized wire EDM services for customers in medical devices, mold parts, precision machinery parts and other industrial fields; support complex stations and difficult parts processing, and can meet the Precision wire EDM processing needs of various conductive materials.

Send Inquiry

Product Description

As a professional Wire Electric Discharge Machining manufacturer, Sanluo Precision has very strict quality control. CAD/CAM software is used to simulate and generate cutting paths, and automatically correct the electrode wire discharge gap. Rough cutting focuses on efficiency, with high current for rapid cutting, and finish cutting requires low current to ensure accuracy and surface roughness.

Station Accuracy

Dimensional accuracy	L（X）	W（Y）	H（Z）	SH	SW
unit:±/mm	0.001	0.001	0.001	0.001	0.002
Geometric accuracy	Flatness	Parallelism	Perpendicularity	Roughness	Symmetry
unit:±/mm	0.001	0.002	0.002	Ra0.2	0.002
Production capacity	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs	1~999999 pcs
Production cycle	3-20 days	3-20 days	3-20 days	3-20 days	3-20 days

Wire EDM Processing Principle

The Wire Electric Discharge Machining used in Sanluo Precision’s processing plant uses moving metal wire as the tool electrode and the workpiece as the other electrode. There is a gap between the two electrodes, and spark discharge occurs under the action of pulse power supply to cut by electric corrosion. The processing principle is that the metal wire moves at a speed of 80～200m/min, the discharge gap is 0.01～0.02mm, the single pulse energy is very small but the frequency is very high, tens of thousands of discharges per second, continuously eroding materials to form cutting seams.

Equipment Technology and Capacity

Wire EDM equipment is divided into low-speed wire-cut equipment according to processing accuracy and efficiency, with processing accuracy of ±0.002mm to ±0.003mm, surface roughness Ra0.2μm to 0.4μm, cutting thickness ≤400mm, taper cutting ±30°. Medium-speed wire-cut EDM processing accuracy is between ±0.005～0.008mm, surface roughness Ra0.8～1.6μm, processing thickness not exceeding 500mm, low price. High-speed wire-cut EDM processing accuracy is ±0.015mm～0.02mm, surface roughness Ra2.5μm～3.2μm, cutting thickness ≤600mm, high efficiency. Electrode wire materials include copper wire, molybdenum wire, galvanized wire, with a diameter of 0.1mm to 0.25mm. We select reasonable Wire Electric Discharge Machining equipment by comprehensively balancing part accuracy and processing efficiency.

Quality Assurance Capacity

Multiple cutting methods are adopted: rough cutting, semi-finish cutting, finish cutting, fine trimming, gradually reaching the drawing accuracy. The equipment is equipped with on-line inspection, using laser probe to detect dimensions, correct allowance and wire loss. After wire EDM processing, image measuring instrument is used to measure profile accuracy, and roughness meter is used to detect surface quality.

Technical Parameters of Wire EDM Equipment

Core Features: Ultra-precision wire EDM, suitable for small precision parts (such as watch parts, optical components).

Category	Parameters
Mechanical Specifications	- Worktable stroke (X×Y): 500×400mm- Z-axis stroke: 310mm- Max. workpiece weight: 800kg- Electrode wire diameter: 0.07-0.3mm (standard 0.20mm)- Worktable size: 850×730mm
Processing Performance	- Max. cutting efficiency: 250mm²/min- Best surface roughness: Ra≤0.1μm- Wire travel speed: <15m/min- Max. cutting taper: ±10°/300mm (optional ±45°/40mm)
Accuracy Index	- Pitch machining accuracy: ±1μm- Repeat positioning accuracy: ±0.001mm- Roundness accuracy: 0.76μm (full circle machining)
Automation Function	- AWF-4 automatic wire threading device: supports 0.07mm thin wire- Guide rail + screw dual positioning: improve accuracy retention- Supports 45° large taper machining (optional)
Others	- Control System: FANUC Series 31i-WB- Working fluid tank capacity: 550L- Filtration accuracy: 3μm (2 paper filters)

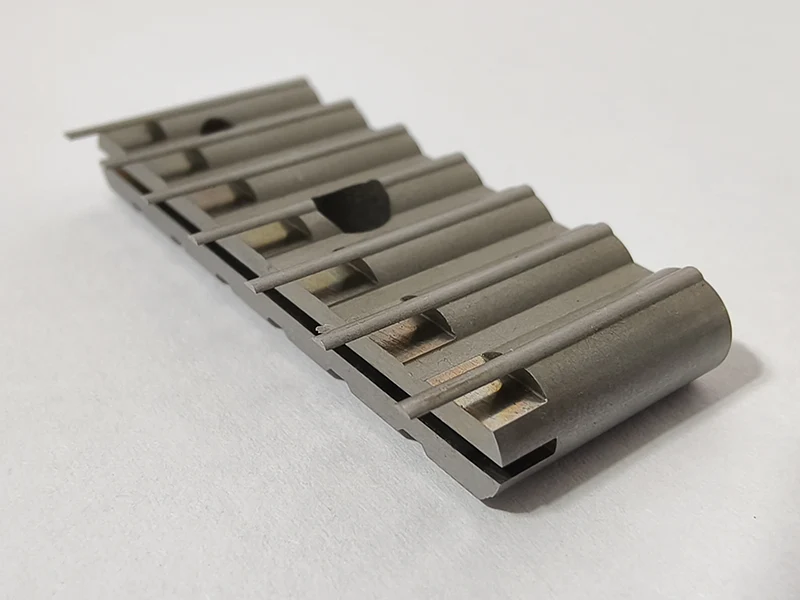

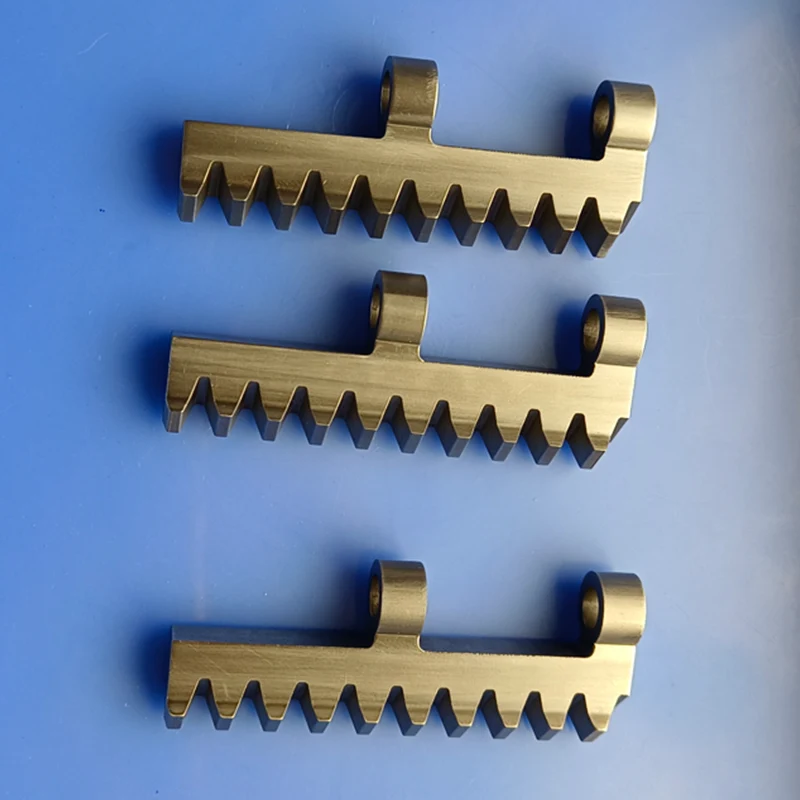

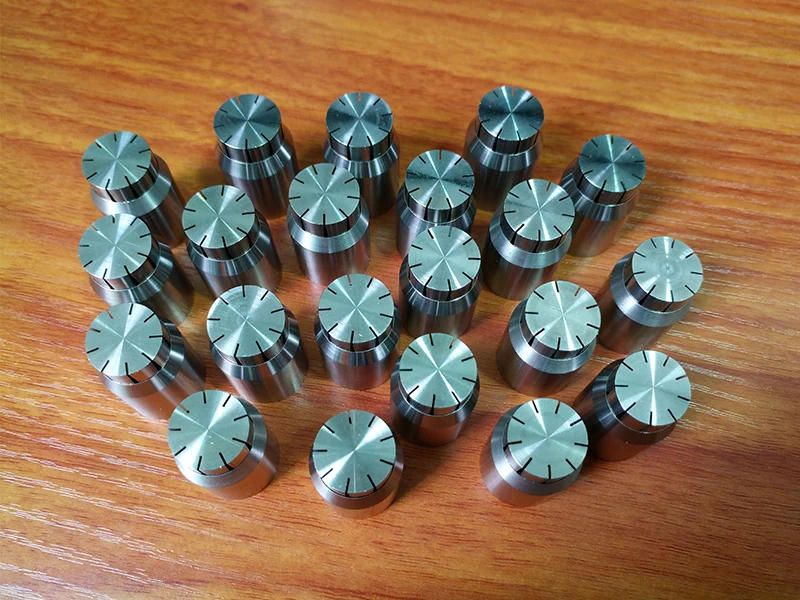

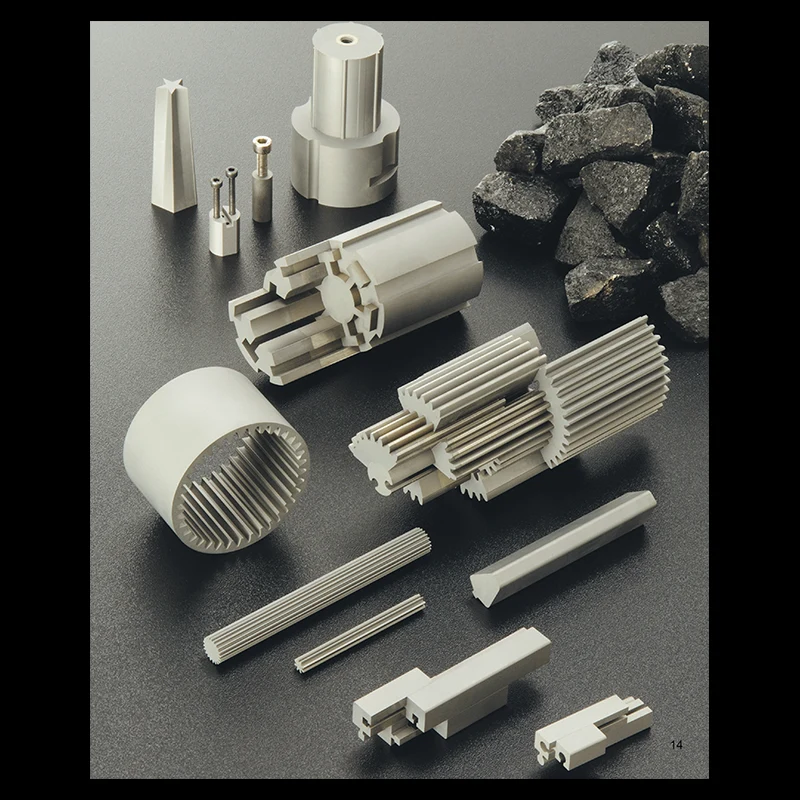

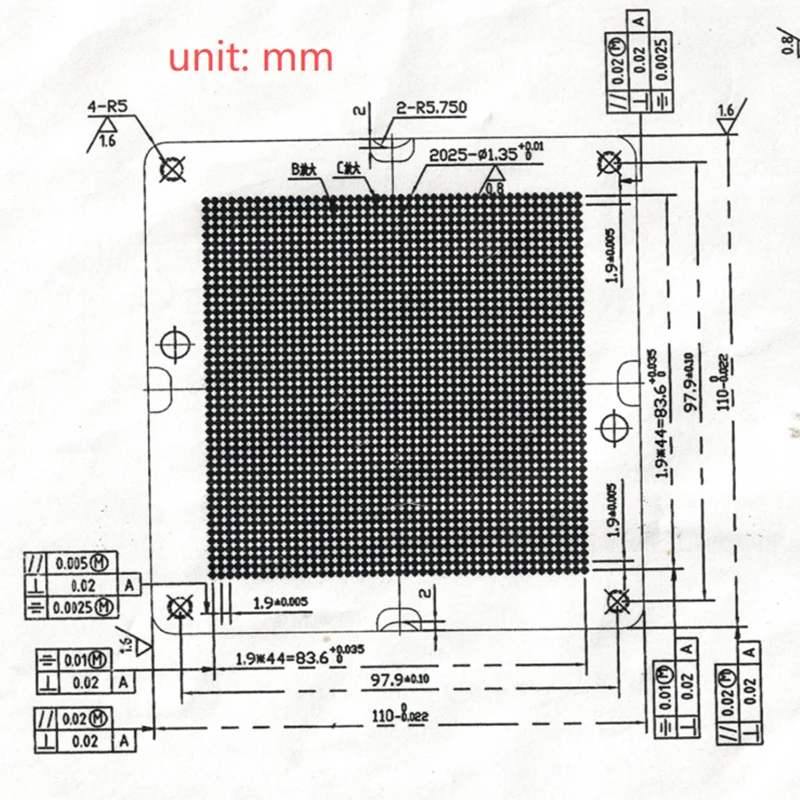

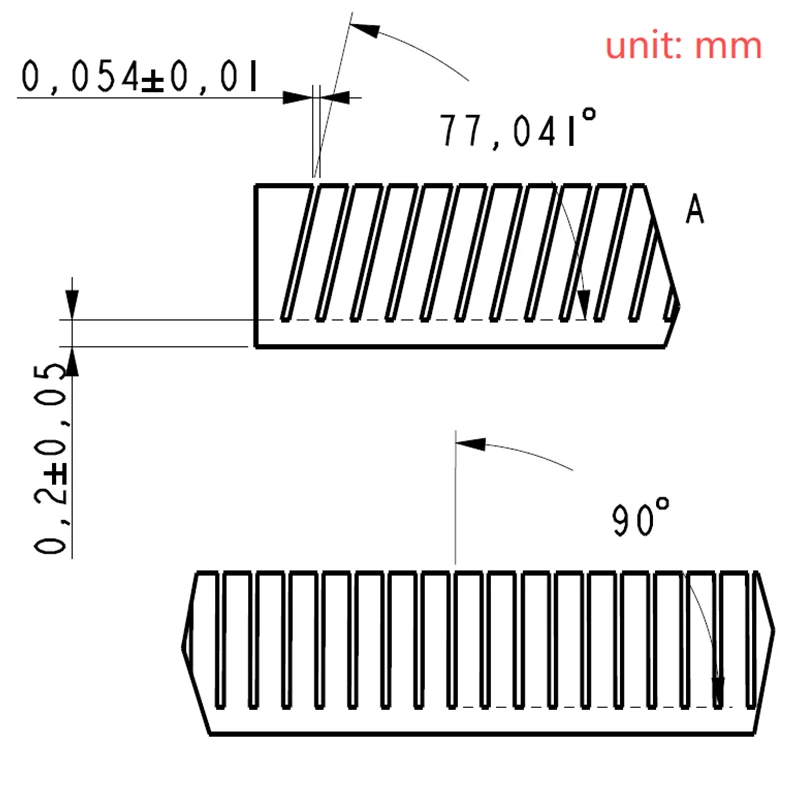

Typical Applications	precision Wire Electric Discharge Machining parts, etc

Parameter	Specifications
Stroke (X×Y×Z)	400×300×305mm (column rising specification 420mm)
U/V axis stroke	±120×±120mm
Max. workpiece size / weight	640×540×305mm / 500kg
Worktable size	640×540mm (integrated "square" quenching disc)
Max. machining accuracy	Corner accuracy ±1μm, roundness accuracy below 2μm
Best surface roughness	Ra0.03μm/Rz0.4μm (Digital-FS power supply, superhard material t10mm)
Max. cutting efficiency	350mm²/min
Electrode wire diameter	0.1~0.3mm (standard), optional 0.05mm ultra-fine wire
Drive System	XYUV axis sleeve type linear motor + photoelectric drive system
Special Technology	Nine-grid matrix compensation, ADVANCE PLUS control, D-CUBES IoT system
Typical Applications	precision wire EDM parts, etc
