We have provided customized centreless grinding processing services for more than 100 enterprises in medical, semiconductor industry and optical industry, supporting the customization of complex and difficult parts.
|
Dimensional accuracy |
OD |
ID |
T（C） |
DP |
SW |
|
unit:±/mm |
0.0005 |
0.002 |
0.002 |
0.002 |
0.002 |
|
Geometric accuracy |
Roundness |
Coaxiality |
Straightness |
Cylindricity |
Symmetry |
|
unit:±/mm |
0.0005 |
0.001 |
0.001 |
0.002 |
0.002 |
|
Production capacity |
1~999999 pcs |
1~999999 pcs |
1~999999 pcs |
1~999999 pcs |
1~999999 pcs |
|
Production cycle |
3-20 days |
3-20 days |
3-20 days |
3-20 days |
3-20 days |
In Sanluo Precision’s centreless grinding process, a three-point support processing system of grinding wheel, regulating wheel and support plate is adopted. The workpiece can be externally cylindrical ground without center hole positioning. The grinding wheel rotates at a high speed of 30—35m/s to remove materials, and the regulating wheel rotates in the same direction at a slow speed of 50-200rpm to drive the workpiece. The support plate supports the workpiece and determines the grinding position. Axial feed is realized by accurately adjusting the inclination angle of the regulating wheel (0.5°-3°). Through-thread grinding is adopted, with workpieces continuously entering from one end and outputting from the other end, and the whole process is uninterrupted. Compared with repeated clamping, tool retraction and commutation of traditional grinders, centerless grinding saves more than 60% of auxiliary time. The rigid support structure formed by the support plate and regulating wheel has a bearing capacity 2-3 times that of center support, and can realize large-depth grinding with single-side allowance of 0.5—2mm, especially suitable for shaft parts with slenderness ratio L/D greater than 10, effectively preventing bending deformation.
As a professional centreless grinding processing plant, Sanluo Precision is equipped with an automatic loading and unloading manipulator system, which can realize 24-hour unmanned production and meet the processing requirements of large batches and high consistency.

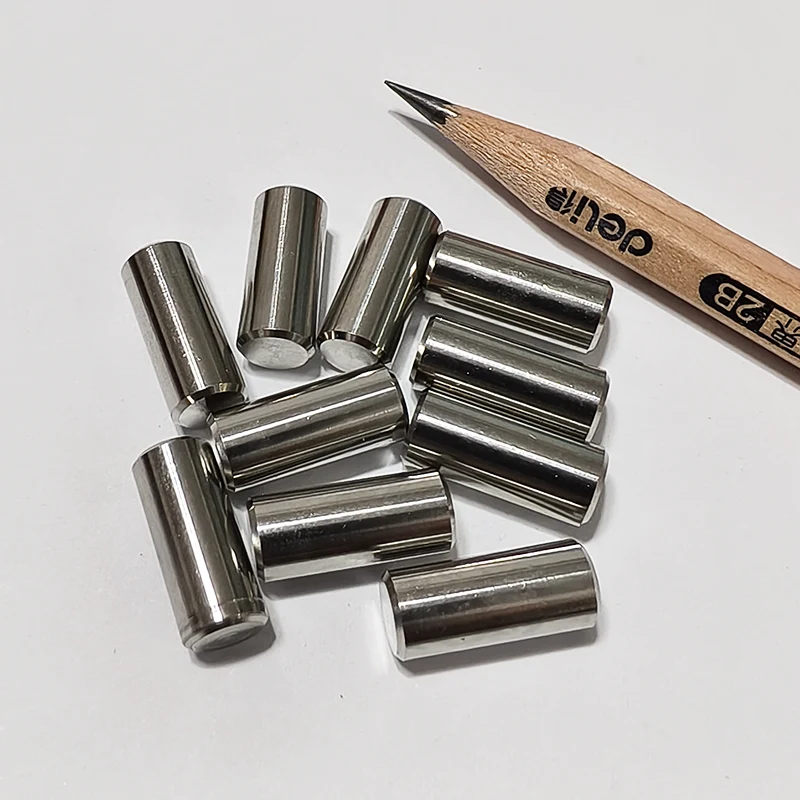

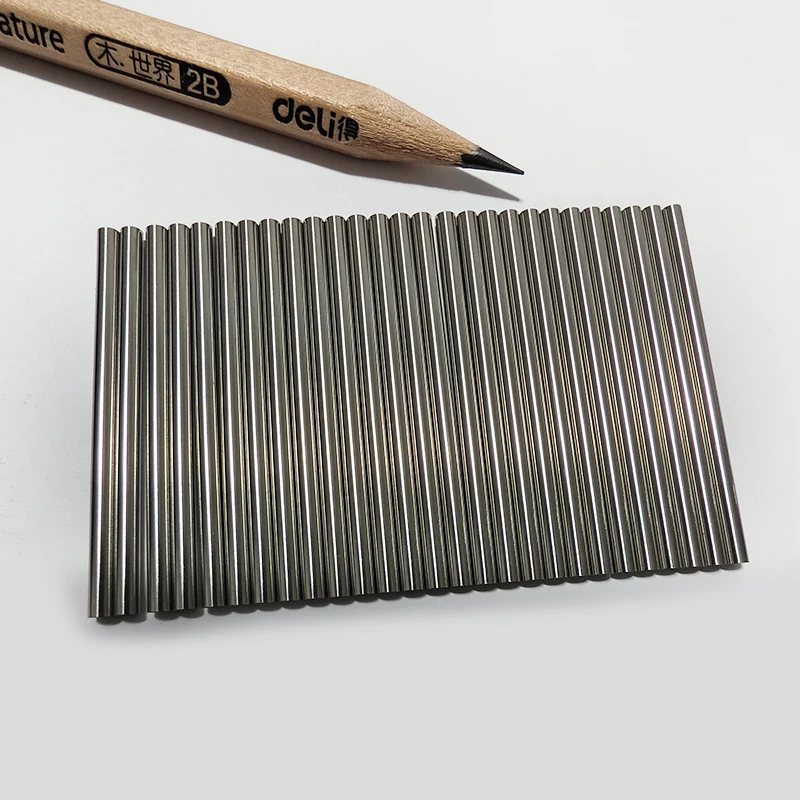

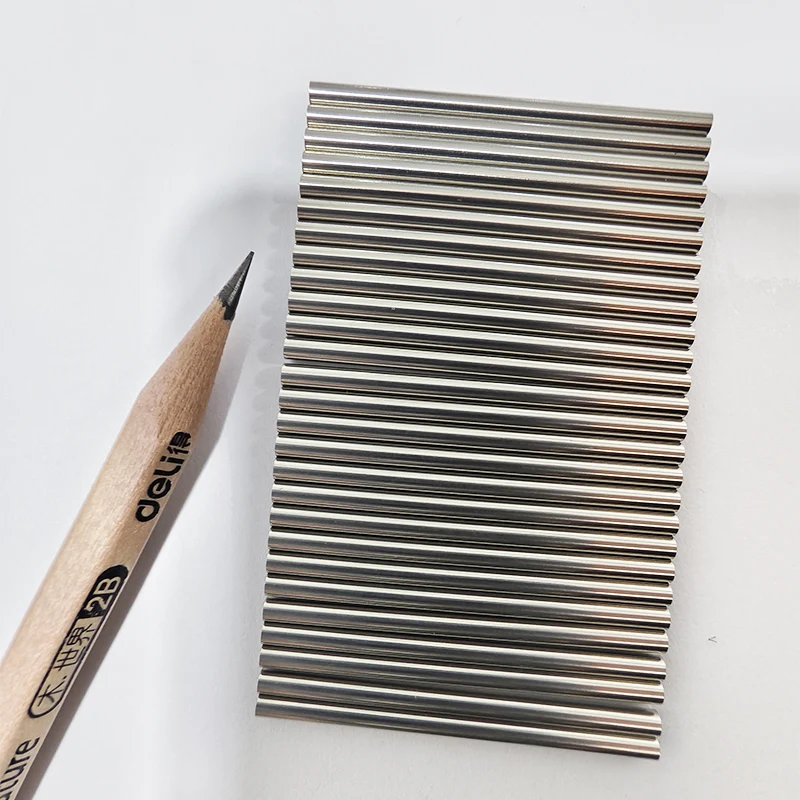

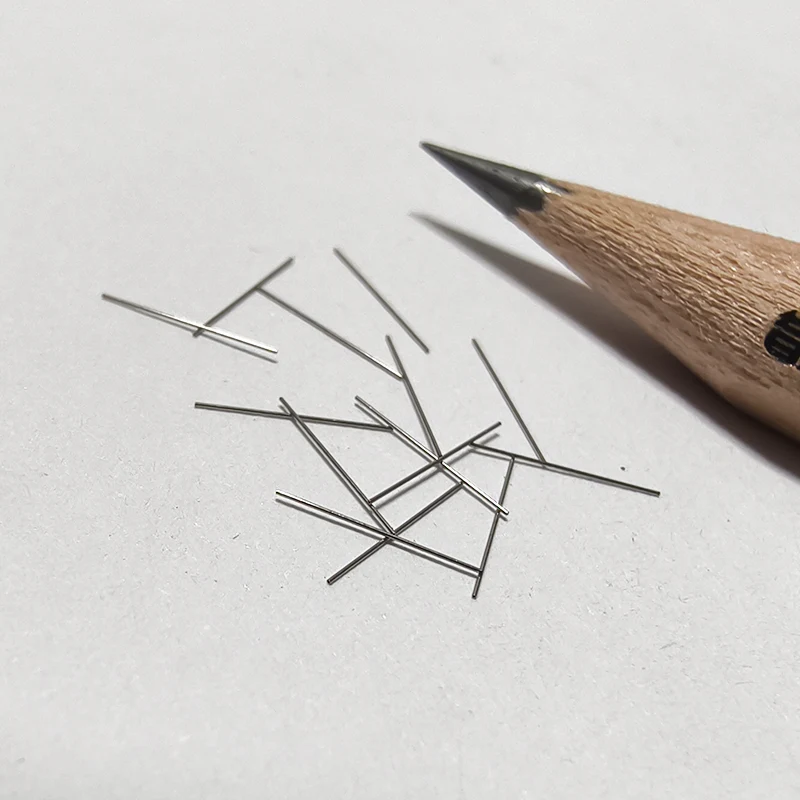

Our centreless grinding processing services cover stainless steel 316L/304, titanium alloy TC4, aluminum alloy 7075/6061, bearing steel GCr15 and other materials, with manufacturing capacity covering cylindrical parts with diameter Φ3-Φ150mm, annual production capacity of 2 million pieces, fully meeting the strict requirements of various industries for precision centerless grinding parts.
|
Parameter Category |
Parameter Details |
|
Equipment model |
GT-610 CNC |
|
CNC Axis |
/ (High-precision CNC control) |
|
Grinding Capacity |
Diameter range: 0.05 mm - 50.8 mm |
|
Spindle System |
Work wheel power: 15 HP (11 kW); Work wheel speed: 500-2,500 RPM |
|
Accuracy Index |
Roundness: better than 1.02 µm; Slide resolution: 0.1 µm |
|
Automation Function |
Automatic dressing, automatic size compensation, automatic wheel balancing |
|
Other Features |
Ultra-high rigidity roller guide rail; can be integrated with robot, feeder, etc |
|
Typical Applications |
precision parts centreless grinding |
|
Parameter Category |
Parameter Details |
|
Equipment model |
OC-24BR-200 |
|
CNC Axis |
3-axis CNC or 5-axis CNC |
|
Grinding Capacity |
Diameter range: 1 mm - 100 mm |
|
Spindle System |
Grinding wheel size: φ610x205（255）xφ304.8 mm; Spindle motor: 15 kW (22 kW optional) |
|
Accuracy Index |
Roundness up to 0.5 µm; Dimensional accuracy up to 2 µm |
|
Automation Function |
Optional gantry feeding device, off-machine laser measuring device |
|
Other Features |
Equipment weight about 5,000 kg, sturdy structure, good stability |
|
Typical Applications |
precision parts centreless grinding |
